D1x2 Mechanical Optical Switch

D1x2 Mechanical Optical Switch

Feature
Low Crosstalk
Low Insertion Loss
Wide Wavelength Range
High Return Loss
ApplicationsV
R&D in Laboratory
Configurable OADM
System Monitoring
MAN (Metropolitan Area Network)

Service Hotline：+86-755-81488131

Feature
Low Crosstalk
Low Insertion Loss
Wide Wavelength Range
High Return Loss
ApplicationsV
R&D in Laboratory
Configurable OADM
System Monitoring
MAN (Metropolitan Area Network)

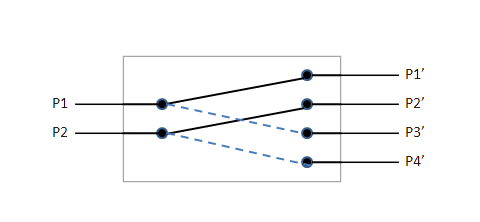

Route States

Pins

Type Optical Path Electric Drive State Sensor
D1×2 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Latching P1-P3′, P2-P4′ -- -- GND V ＋ Close Open Open Close
P1-P1′, P2-P2′ V ＋ GND -- -- Open Close Close Open
Non-Latching P1-P3′, P2-P4′ -- -- -- -- Close Open Open Close
P1-P1′, P2-P2′ V ＋ -- -- GND Open Close Close Open

Specifications
Model unit D1x2
Operating wavelength nm 850±40/1300±40 1260~1620
wavelength nm 850&1300 1310&1550
Insertion loss dB Typ:1.0  Max:1.5
Return loss dB MM≥30  SM≥50
Cross talk dB MM≥35  SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Voltage v 3.0 or 5.0±0.5
Operating life Time ≥107
Switch time ms ≤8
Power handling mW ≤500
Operating temperature ℃ -20~+70
Storage temperature ℃ -40~+85
Fiber color P1, P1'Blue ; P2, P2'Red ; P3, P3'White
Size mm 27.0×12×8.2
Note: 1, Within operating temperature and SOP.  2, Excluding Connectors.

Ordering Information
Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM M=MM 85=850nm
13=1310
15=1550
X=Others 		3=3V
5=5V 		L=Latching N=Non- Latching 5=50/125
6=62.5/125
9=9/125
X=Others 		25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others 		1=1m
2=1.5m
X=Others 		00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC
X=Customized
