Product Information

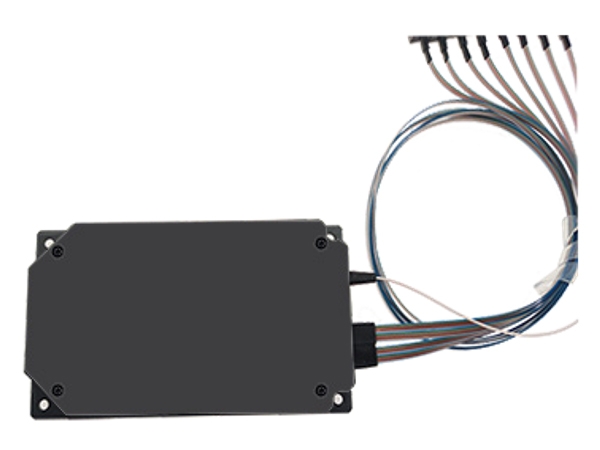

- Description : C-band 64Ch 75GHz Athermal AWG
- Specification Revision : Version 1.06
- Issue Date : October 20th, 2024
- Product Application :
The specification serve for C-Band AWG Mux/DeMux in DWDM System.

Optical Specifications
All specifications guaranteed over the operating temperature range.

Parameter

Specifications

Unit

Comment

Min

Max

Input Channel

1

Output Channel

64

32,40,80 channels available

Channel Spacing

75

GHz

Isolation Bandwidth

-9

+9

GHz

Wavelength Accuracy

-4

+4

GHz

0.5dB Bandwidth

43

GHz

1dB Bandwidth

51

GHz

3dB Bandwidth

71

GHz

IL

6.0

dB

Insertion Loss

Insertion Loss Uniformity

1.5

dB

Loss uniformity over all channnels.

PDL

0.5

dB

Max. value in ITU passband

Adjacent Channel Isolation

8

dB

Non-Adjacent Crosstalk

29

dB

Return Loss

40

dB

Maximum Continuous Optical Power

300

mW

Maximum input optical power

TEMPERATURE CONDITIONS

Parameter

Specification

Unit

Note

Operating Temperature Range

-5 ~ +65

°C

Storage Temperature Range

-40 ~ +85

°C

PIGTAIL AND CONNECTOR

Parameter

Specification

Unit

Note

Fiber Type

G657A1

COM/MON Port Fiber Length

500±50

mm

900μm Loose Tube

Fan-out Fiber Length

380±50

mm

900μm Loose Tube

COM/MON Connector Type

LC/UPC

OUTPUT Port Connector Type

LC/UPC

Fiber length and Connector Type is available to change by customer’s request.

Part Number
AAWG - 1 - F96 - C21 - 10 - 0505 - LAAAWG   -   1   -   F64   -   CH64   -   10   -   0505   -   LC

PMAAWG

Channel Spacing

Passband Profile

Channel Number

Start Channel Number

Input Common Fiber Length

Ribbon / Fan output Fiber length

Connecter

1:75GHz

F:Flat-top

64 : 64ch

ITU Channel Table

Ex) 05 : 0.5m 10 : 1m

Ex) 0505 : 0.5m/0.5m 1010 : 1m / 1m

L:LC

A:APC

G:Gaussion

80:80ch

S:SC

U:UPC

F:FC
