ProductInformation

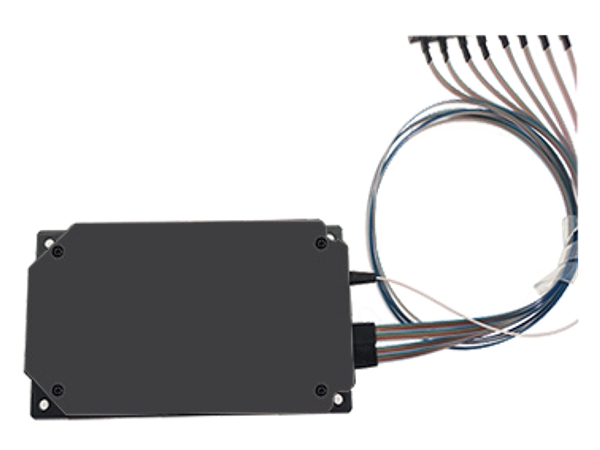

- Description : C-band 96Ch 50GHz PM Athermal AWG

- Specification Revision : Version 1.06

- Issue Date : December 20th, 2024

- Product Application : V

The specification serve for C-Band AWG Flat-Top Mux/DeMux in DWDM System

Optical Specifications

All specifications guaranteed over the operating temperature range.

Parameter

Specifications

Unit

Comment

Min

Max

Input Channel

1

Output Channel

96

80, 88 channels available

Channel Spacing

50

GHz

1dB Bandwidth

0.18

nm

Flat-top Type

3dB Bandwidth

0.28

nm

I.L

7

dB

Worst case in ITU passband

I.L UNI.

1

dB

Ripple

0.7

dB

Loss variation in ITU passband

Adjacent Crosstalk

22

dB

Worst case in ITU passband

Non-Adjacent Crosstalk

27

dB

Worst case in ITU passband

Total Crosstalk

20

dB

Cumulative crosstalk of all other channels

Return Loss

40

dB

Maximum Continuous Optical Power

250

mW

Maximum input optical power

Chromatic Dispersion(CD)

-20

+20

ps/nm

PMD

0.5

ps

TEMPERATURE CONDITIONS

Parameter

Specification

Unit

Note

Operating Temperature Range

-10 ~ +65

°C

Storage Temperature Range

-40 ~ +85

°C

PIGTAIL AND CONNECTOR

Parameter

Specification

Unit

Note

Pigtail Type

PM1550 with 900um Loose Tube Fiber

Input Common Fiber

1000±50

mm

bare Fiber

1000±50

mm

bare Fiber

Fanout Fiber

500±50

mm

Connector Type

LC/UPC

Fiber length and Connector Type is available to change by customer’s request.

Part Number
AAWG - 1 - F96 - C21 - 10 - 0505 - LA

PMAAWG

Channel Spacing

Passband Profile

Channel Number

S t a rt   Ch a n n el Number

Input Common Fiber Length

Ribbon  /  Fan  output Fiber length

Connecter

1:50GHz

F:Flat-top

80 : 80ch

ITU Channel Table

Ex) 05 : 0.5m 10 : 1m

Ex) 0505 : 0.5m/0.5m 1010 : 1m / 1m

L:LC

A:APC

88 : 48ch

S:SC

U:UPC

96: 96ch

F:FC
