Feature
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path

Application
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Acess Network

Dimensions

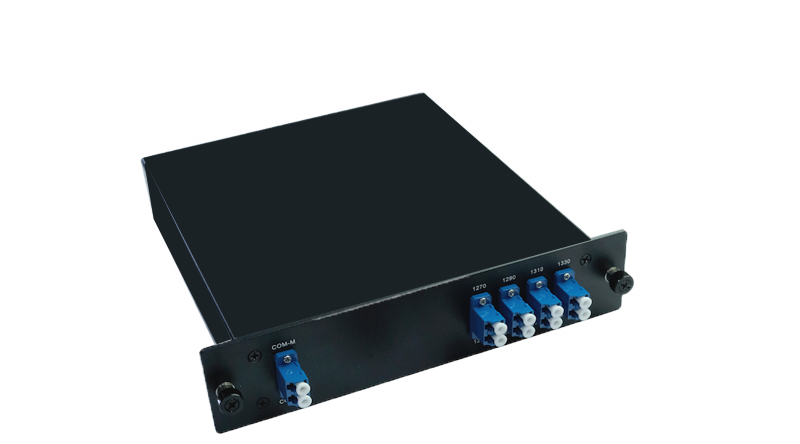

4CH cassette box: 130x100x25mm

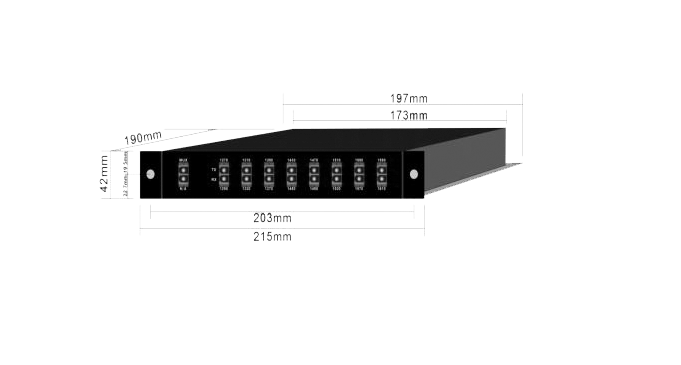

8CH Metal box: 215x190x42mm

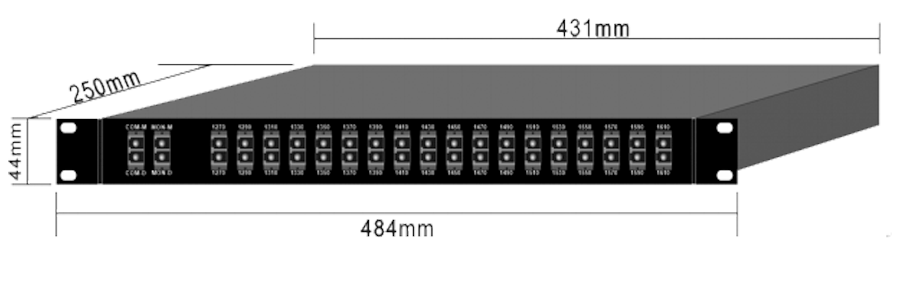

18CH Rack Mount -19 ＂ 1U:  484x250x44mm

Ordering Information

CWDM	Channel No.	MUX/DEMUX Type	Initial CW	Package Type		Input Connector	Output Connector
	04= 02CH	M= Mux	270= 1270	LGX=155x129 x29		0=NO	0=NO
	…………	D= Demux	…	2H1=215x190x42		1=FC/UPC	1=FC/UPC
	08= 08CH	M&D= Mux&Demux	550=1550	191=484x250x44		2=FC/APC	2=FC/APC
	18= 18CH		551=1551	XXX= Customized		3=SC/UPC	3=SC/UPC
						4=SC/APC	4=SC/APC
						5=LC/UPC	5=LC/UPC
						6=LC/APC	6=LC/APC
