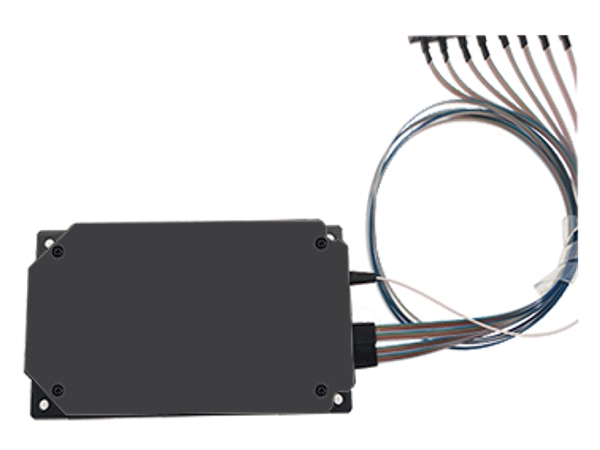

AAWG-100GHz-14CH-L_band-Flat TopA Specification

AAWG-100GHz-14CH-L_band-Flat TopA Specification

The AWG operate in L-band for MUX/DEMUX application in DWDM system. And it meet the following specification over the operating temperature.


Service Hotline：+86-755-81488131

Introduction
The AWG operate in L-band for MUX/DEMUX application in DWDM system. And it meet the following specification over the operating temperature.


Technical Parameter

Parameter Specification Units Notes
Min Type Max
Channel Spacing 100 GHz
Nos of Channel 14 Channels
Channel Frequencies ITU Grid THz
Available Channel Frequency Range C01 C15 THz
Channel Passband -12.5 +12.5 GHz
-0.10 +0.10 nm
Center Wavelength Accuracy -0.04 +0.04 nm
-5 +5 GHz
Insertion Loss 6.5 dB @Center Wavelength
6.8 dB Full Bandwidth
Passband Ripple 0.5 dB Full Bandwidth
Bandwidth @1.0dB 50 GHz
Bandwidth @3.0dB 75 GHz
Bandwidth @20dB 150 GHz
Insertion Loss Uniformity at ITU 1.20 dB
Adjacent Channel Isolation 18 25 dB
Non-Adjacent Channel Isolation 33 35 dB
Total Cross Talk 18 23 dB
Directivity 45 dB
Return Loss with connectors 40 45 dB
Chromatic Dispersion -20 +20 ps/nm
PMD 0.5 ps
Optical Power Handling of Common Port 24 dBm

Notes: 1. Specified without connectors. 2. Add an additional 0.2dB loss per connector.


OperatingConditions

Parameter Min Max Units
Temperature -5 70 ℃
Humidity Non-condensing 0 90 % R.H.

Storage Conditions

Parameter Min Max Units
Temperature -40 85 ℃
Humidity Non-condensing 0 90 % R.H.


Physical Parameters

Parameter Min Type Max Units
Length 120 mm
Width 70 mm
Height 12 mm
Number of Input Fiber 1
Number of Output Fibers 14
Type of Connector Specified
