Product Information

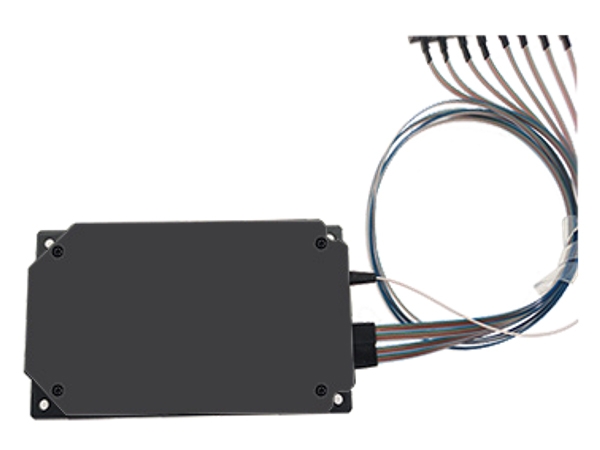

- Description : C-band 64Ch 75GHz Athermal AWG- Description : C-band 40Ch 100GHz Athermal AWG
- Specification Revision : Version 1.06
- Issue Date : December 20th, 2013
- Product Application :
The specification serve for C-Band AWG Flat-Top Mux/DeMux in DWDM System

Optical Specifications
All specifications guaranteed over the operating temperature range.

Parameter

Specifications

Unit

Comment

Min

Max

Input Channel

1

Output Channel

40

32, 48 channels available

Channel Spacing

100

GHz

Reference Passband

-12.5

12.5

GHz

Wavelength Accuracy

-50

50

pm

Relative to ITU Grid

1dB Bandwidth

0.4

nm

3dB Bandwidth

0.6

nm

I.L

6

dB

Worst case in ITU passband

I.L UNI.

1

dB

Ripple

0.7

dB

Loss variation in ITU passband

Adjacent Crosstalk

25

dB

Worst case in ITU passband

Non-Adjacent Crosstalk

30

dB

Worst case in ITU passband

Total Crosstalk

22

dB

Cumulative crosstalk of all other channels

Return Loss

40

dB

Maximum Continuous Optical Power

250

mW

Maximum input optical power

Chromatic Dispersion(CD)

-20

+20

ps/nm

PMD

0.5

ps

TEMPERATURE CONDITIONS

Parameter

Specification

Unit

Note

Operating Temperature Range

-5 ~ +65

°C

Storage Temperature Range

-40 ~ +85

°C

PIGTAIL AND CONNECTOR

Parameter

Specification

Unit

Note

Pigtail Type

PM1550 with 900um Loose Tube Fiber

none

Input Common Fiber

1000±50

mm

none

bare Fiber

1000±50

mm

none

Fanout Fiber

500±50

mm

none

Connector Type

LC/UPC

none

 Fiber length and Connector Type is available to change by customer’s request.

Part Number
AAWG   -   1   -   F40   -   C60   -   10   -   0505   -   LA

PMAAWG

Channel Spacing

Passband Profile

Channel Number

S t a rt   Ch a n n el Number

Input Common Fiber Length

Ribbon  /  Fan  output Fiber length

Connecter

1:100GHz

F:Flat-top

32 : 32ch

ITU Channel Table

Ex) 05 : 0.5m 10 : 1m

Ex) 0505 : 0.5m/0.5m 1010 : 1m / 1m

L:LC

A:APC

40 : 40ch

S:SC

U:UPC

48: 48ch

F:FC
