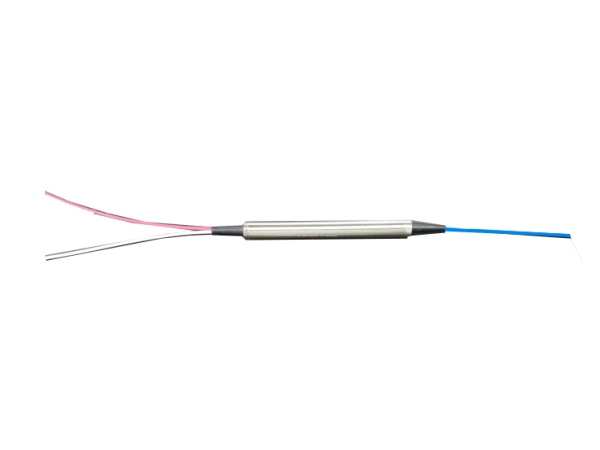

Feature
Low Insertion Loss High Isolation
High Stability and reliability
Application
Fiber Amplifier
Fiber Laser
Fiber Instrument

Specifications

Fiber Type

SMF Fiber

Dimmension (mm

1.0(OD) Lens

3.2x10 Metal holder or 2.78x9.0 Glass tube

1.0(OD) Lens

1.8x7 Metal holder or 1.4x 7 Glass tube

Operating Temperature(C)

-5 ~ +70

Storage Temperature(C)

-40~ + 85

Type Parameter

1480/1550

980/1064

980/1550

1064/1030

1550/1064

Pass wavelength (nm)

1530-1580

960-990

1520-1600

1064±2.5

1500~1600

Reflection wavelength (nm)

1440-1490

1020-1080

965-1000

1030±10

1040~1064

Pass insertion loss (dB)

≤0.6

≤0.8

≤0.8

≤0.8

≤0.8

Reflection insertion loss (dB)

≤0.5

≤0.6

≤0.6

≤0.6

≤0.6

Pass channel isolation (dB)

≥30

≥25

≥30

≥25

≥25

Reflection isolation (dB)

≥13

≥13

≥18

≥13

≥13

Channel flatness (dB)

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

Directivity (dB)

≥55

Return loss (dB)

≥50

PDL(dB)

≤0.1

Wavelength   thermal   stability (nm/℃)

≤0.003

Insertion loss thermal stability(dB)

≤0.005

Power handling (mW)

≤300

Operating temperature (℃)

0 ~ +70

Storage temperature (℃)

-40 ~ +85

Dimensions (mm)

φ5.5×L34

Ordering Information

FWDM

Wavelength

Pigtail Type

Fiber Type

Length

Connector

1064T/1030R

250=250um  bare fiber

1=SMF-28e

1= 1m

NE=None

980T/1064R

900=900um  loose tube

4=HI1060

FA=FC/APC

980R/1064T

3000=3mm   loose tube

FC=FC/UPC

1550T/980R

SA=SC/APC

1480T/1550R

SC=SC/UPC

1550T/1480R

LC=LC/UPC

1550T/1064R

XX=Other
