1x2 Isolator Polarization Beam Combiner -Splitter Home > Product > 1x2 Isolator Polarization Beam Combiner -Splitter

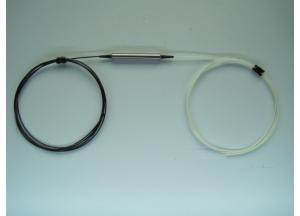

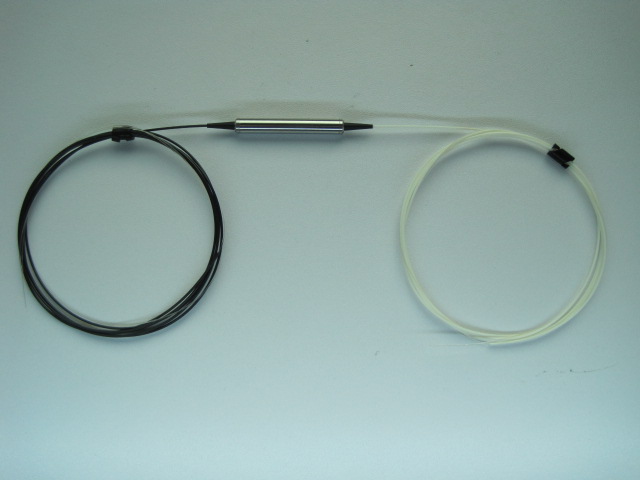

1X2 Isolator PBC/PBS

  Product Description:


 Key Features:                                                                                                Application:

♦Low insertion loss                                                                                          ♦EDFA&Raman ampfier
♦High extinction ratio                                                                                       ♦Coherent telecommunication system
♦High stability and reliability                                                                             ♦Fiber sensor
                                                                                                                      ♦Polarization mode dispersion compensator
Specification:

Type
Parameter

Single stage

Dual Stage

Single Stage
Wavelength (nm)
1310, 1450,1480, 1550
1064
Operating Bandwidth (nm)
±20
±5
Typ. Insertion Loss (dB)
0.45
0.55
1.8
Insertion Loss (dB)
≤0.70
≤0.80
≤2.1
Typ. Isolation (dB)
35
51
35
Isolation(dB)
≥20
≥42
≥25
Extinction Ratio (dB)(only for
PBS)
≥20
≥20
≥20
Directivity (dB)
≥50
Return loss (dB)
≥50
Power handling (mW)
≤300
Fiber Type
Port 1 &2
Panda Fiber
Port 3
SMF-28 or HI1060 or Panda fiber
Operating temperature ()
-5~+70
Storage temperature ()
-40 ~ +80
Dimensions (mm)
φ5.5×L35







   For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis

Ordering Information:
IPBS
IPBC
Port
Wavelength
Stage
Pigtail
Type
Fiber Type For Port 3
Length
Connector

1x2
1064
1310
1450
1480
1550
S=Single
Stage
D=Dual
Stage
250=250um
bare fiber
900=900um
loose tube
3000=3mm
loose tube
1=SMF-28e
2=HI1060
3= PM fiber,Slow axis
align to Port 1
4=PM fiber, Slow axis
align 45° to port 1
0.8=
0.8m
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
XX=Other

For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
