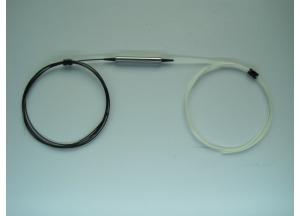

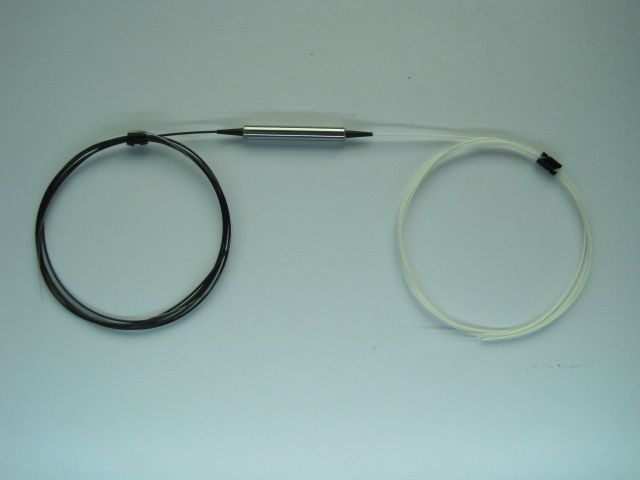

PM Fiber Gain Flattening Filter

  Product Description:

 Key Features:                                                                                                Application:

♦Low insertion loss                                                                                             ♦Fiber ampfier
♦High extinction ratio                                                                                          ♦EDFA
♦Flat spectral gain                                                                                             ♦Fiber sensor
♦High stability and reliability                                                                                ♦Fiber instrument

Specification:

  Parameter

Value

Wavelength Range C-band (nm)

1528 ~ 1565

Insertion Loss (dB)

< 0.6

Peak to Peak Error Function (dB)

< 0.5

Extinction Ratio (dB)

< 0.1

Return Loss (dB)

> 50

Maximum Power Handling (mW)

500

Operating Temperature (°C)

0 ~ +70

Storage Temperature (°C)

-40 ~ +85

Dimensions (mm)

5.5xL34

 For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis

 Ordering Information
PMGFF
Port
Type
Wavelength
Pigtail Type
Fiber Type
Length
Connector



1x1
1550
250=250um bare fiber
900=900um loose tube
2=PMF
1= 1m
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
LC=LC/UPC
LA=LC/APC
XX=Other
 For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
sales@lightwit.com.cn
