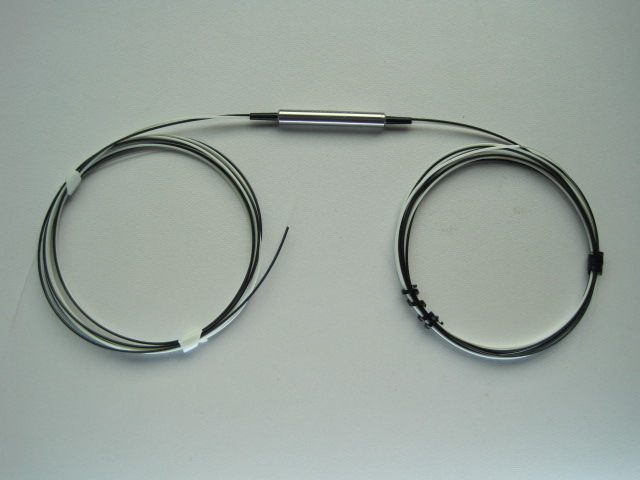

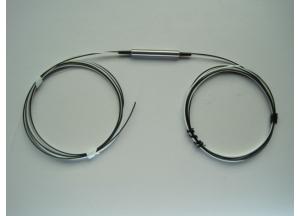

Key Features: Application:
♦Low insertion loss ♦Fiber ampfier
♦High extinction ratio ♦EDFA
♦High isolation ♦Fiber sensor
♦High stability and reliability ♦Fiber instrument
Specification:
|
Parameter Type
|
Value
|
|
Operating Wavelength (nm)
|
1064+/-2.5
|
|
Insertion loss (dB)
|
≤0.8
|
|
Min. Pass bandwidth at 0.5dB (nm)
|
5.0
|
|
Max Pass bandwidth at 25dB (nm)
|
22
|
|
Extinction Ratio (dB)
|
≥20
|
|
Return loss (dB)
|
≥50
|
|
Power handling CW (mW)
|
≤300
|
|
Fiber Type
|
PM 980
|
|
Operating temperature (℃)
|
0 ~ +65
|
|
Storage temperature (℃)
|
-40 ~ +85
|
|
Dimensions (mm)
|
φ5.5×L35
|
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis
|
PMBF
|
Wavelength
|
Pass
bandwidth
|
Pigtail Type
|
Fiber
Type
|
Length
|
Connector
|
|
|
1064
|
5=5nm
|
250=250um bare fiber
900=900um loose tube
3000=3mm loose tube
|
5=Pand
a fiber
|
0.8= 0.8m
X=Specify
|
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
XX=Other
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
