PM Isolator (1064nm) Home > Product > PM Isolator (1064nm)

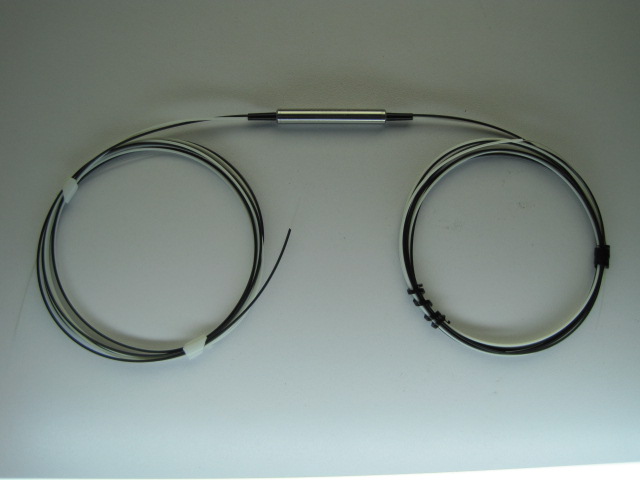

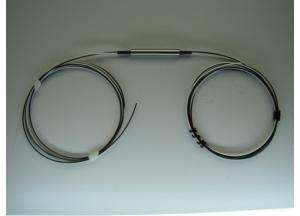

PM Isolator (1064nm)

  Product Description:

Key Features:                                                                                                Application:

♦Low insertion loss                                                                                            ♦Fiber ampfier
♦High extinction ratio                                                                                         ♦EDFA
♦High isolation                                                                                                  ♦Fiber sensor
♦High stability and reliability                                                                               ♦Fiber instrument

Specification:



Type
Parameter
Single Grade
Dual Grade
P
A
P
A
Operating wavelength (nm)
1064
Bandwidth (nm)
±5
Peak isolation (dB)
40
38
55
52
Isolation (at 23) (dB)
35
32
45
42
Typ. Insertion Loss (at 23)
1.5
1.6
2.4
2.6
Insertion Loss (at-5 ~ +70 )
1.8
2.0
3.2
3.4


Extinction
Ratio
(dB)

Type 2
(Both of axis working)

20

18

20

18

Type 1

22

20

22

20
Return loss (Input/Output) (dB)
50
Power handling (mW)
≤300
Fiber Type
PM 980
Operating temperature ()
-5~+70
Storage temperature ()
-40 ~ +80
Dimensions (mm)
φ5.5×L35
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis

Ordering Information
PMIS
Type
Grade
Wavelength
Axis
Alignment
Pigtail Type
Fiber
Type
Length
Connector

S=
Single
stage
D = Dual
Stage
P
A
1064
1=Fast Axis
Blocked
2=Both
Axis
Working
250=250um
bare fiber
900=900um
loose tube
3000=3mm
loose tube
5=Panda
fiber
0.8=0.8m
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
XX=Other


For drawings, technical data or samples configuration other than stated above, please feel free to contact us:

sales@lightwit.com.cn
