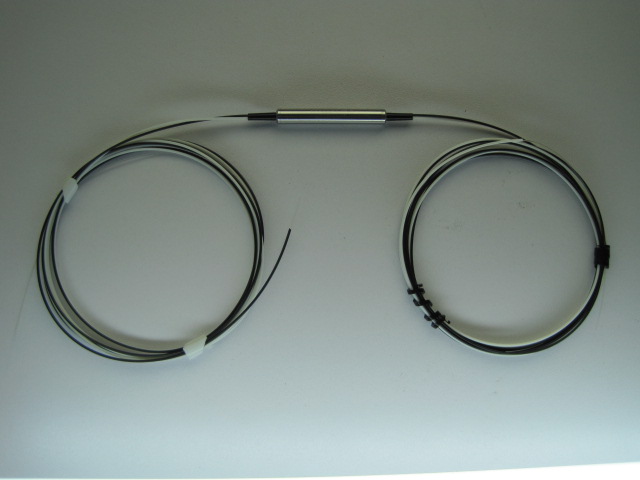

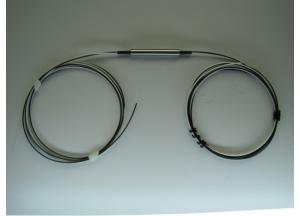

PM Isolator (980nm)

  Product Description:

Key Features:                                                                                                Application:

♦Low insertion loss                                                                                            ♦Fiber ampfier
♦High extinction ratio                                                                                         ♦EDFA
♦High isolation                                                                                                  ♦Fiber sensor
♦High stability and reliability                                                                               ♦Fiber instrument

Specification:



Parameter
Unit
Value
Type

980/1064
1030/1064
980/1550
1550/1064
Pass wavelength
nm
960~990or
1020~1080
1064+/-2.5
1520~1580
1500~1600
Reflection
wavelength
nm
1020~1080or
960~990
1030+/-10
960~990
1040~1064
Pass Insertion
Loss
dB
≤0.8
≤0.8
≤0.7
≤0.8
Reflection
Insertion Loss
dB
≤0.6
≤0.6
≤0.5
≤0.6
Pass channel
Isolation
dB
≥25
≥25
≥25
≥25
Reflection
Isolation
dB
≥12
≥12
≥12
≥12
Channel Flatness
dB
≤0.3
Extinction Ratio
dB
≥20
Return Loss
dB
≥50
Insertion loss
thermal stability
dB/
≤0.005
Power handling
mW
≤300
Fiber
Type
Comm &
Pass port

PM 980
PM 1550
Reflection

HI1060 or PM 980
HI1060 or PM
980
Operating
temperature
0 ~ +65
Storage
temperature
-40 ~ +85
Dimensions
mm
φ5.5×L35
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis

Ordering Information

PMFWDM
Port Type
Wavelength
Pigtail Type
Fiber
Type
Length
Connector

1x1
1x2
980T/1064R
1064T/980R
1550T/980R
1550T/1064R
1064T/1030R
250=250um bare fiber
900=900um loose tube
3000=3mm loose tube
5=Panda fiber
0.8=0.8m
X=Specify
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
XX=Other


For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
