1x2 Polarization Beam Combiner- Splitter Home > Product > 1x2 Polarization Beam Combiner- Splitter

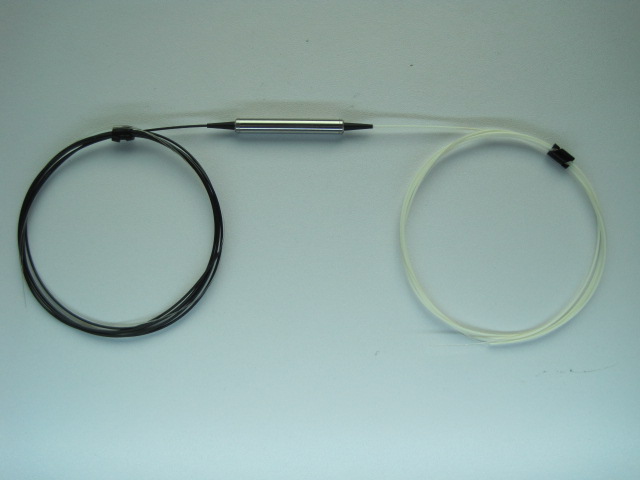

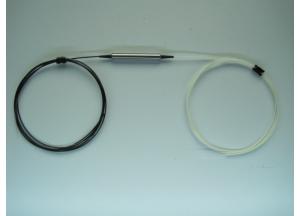

1X2 PBC/PBS

  Product Description:
  Key Feature:                                                              Application:

Low Insertion Loss                                                                              EDFA & Raman Amplifier
♦ High Extinction Ratio                                                                         ♦Fiber Sensor
High Stability and Reliability                                                                Coherent Telecommunication Systems
                                                                                                          ♦Polarization Mode Dispersion Compensator
Specifications


Parameter Unit Value
Grade

P
A
P
A
Wavelength
nm
1310, 1450, 1480, 1550
1064980
Operating Bandwidth
nm
±40
±20
Typ. Insertion Loss
dB
0.40
0.50
0.60
0.70
Insertion Loss
dB
≤0.60
≤0.70
≤0.80
≤0.90
Extinction Ratio (Only for PBS)
dB
≥22
≥20
≥22
≥20
Directivity
dB
≥50
Return Loss
dB
≥50
Power Handling
mW
≤300
Fiber Type
Port 1 & 2

Panda Fiber
    Port 3

SMF-28e or HI 1060 or PM Panda Fiber
Fiber Length (m)
m
0.80 or other
Operating Temperature
°C
-5 ~ +70
Storage Temperature
°C
-40 ~ +80
Dimensions
mm
φ5.5 × L35

For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.

Ordering Information:
PBS,PBC
Port
Grade
Wavelength
Pigtail Type
Fiber Type For Port3
Length
Connector

1x2
P
A
  1064
  1310
  1450
  1480

1550
250=250um  Bare Fiber  900=900um  Loose Tube  3000=3mm  Loose Tube
 1=SMF-28e

2=HI 1060
 3=PM Fiber, Slow    Axis Align to Port 1
 4=PM Fiber, Slow Axis  Align 45° to Port 1
0.8=0.8m
 NE=None  FA=FC/APC  FC=FC/UPC  SA=SC/APC  SC=SC/UPC  XX=Other








 For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
