PM Planar Lightwave Circuit Splitter Home > Product > PM Planar Lightwave Circuit Splitter

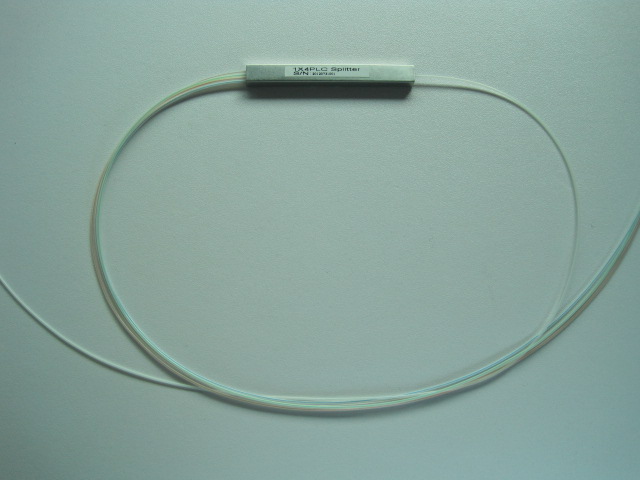

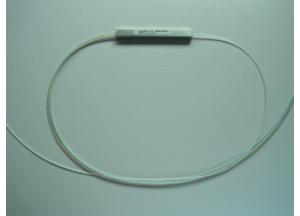

PM PLC Splitter

  Product Description:
  Key Features:                                                                             Application:

♦Low insertion loss                                                                                             ♦Fiber laser
♦High extinction ratio                                                                                           ♦Fiber optical instruments
♦High isolator                                                                                                       ♦PM optical system
High Stability and Reliability                                                                                  ♦Fiber sensor

Specification:

Parameter

   1x2  2x2

   2x4  2x4

  1x6    2x6

  1x8   2x8

Operating wavelength
            (nm)

                    1260-1650(nm)

Insertion Loss (dB)

≤4.5

≤7.5

≤8.8

≤10.5

Uniformity (dB)

≤0.6

≤0.6

≤0.8

≤0.8

ER (dB)

≥20

≥20

≥20

≥20

Return loss (dB)

≥50

Fiber type

PM fiber780, 1060 , 98013101550 or others

Operating temperature(℃)

-5~70

Storage temperature(℃)

-40~85

Package Dimension ( Bare fiber 250um) (L×W×H)(mm)

40×4×4

40×4×4

40×4×4

40×4×4

Module Package Dimension(L×W×H)(mm)

100×80×10























*The specifications are w/o connector.  * For devices with connectors, 0.3dB higher for IL, 5dB lower for RL and 2dB lower for ER.   * For device with connector, key aligned to slow axis.

Ordering information:

PMPLC NXM

XX

X

XX

X

X

X

XX

Product

Description

Operating

Wavelength

Pigtail

Type

Fiber

Type

Input

Connector

Type

Output

Connector

Type

Package Size

Fiber

Length

P=Polarization

98=980nm

0=250um

98=PM98

0=None

0=None

1=40×4×4

05=0.5m

M=Maintaining

06=1060nm

1=900um

06=PM98

1=FC/UFC

1=FC/UFC

2=50×7×4

08=0.8m

P=Planar

13=1310nm



13=PM13

2=FC/APC

2=FC/APC

3=100X80X10

10=1.0m

L=Lightwave

15=1550nm



15=PM15

3=SC/UPC

3=SC/UPC



15=1.5m

C=Circuit







4=SC/APC

4=SC/APC





N=1,2







5=LC/UPC

5=LC/UPC





M=2,4,8,







6=LC/APC

6=LC/APC




















  For drawings, technical data or samples configuration other than stated above,  please feel free to contact us:
