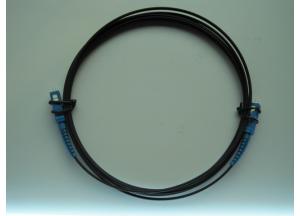

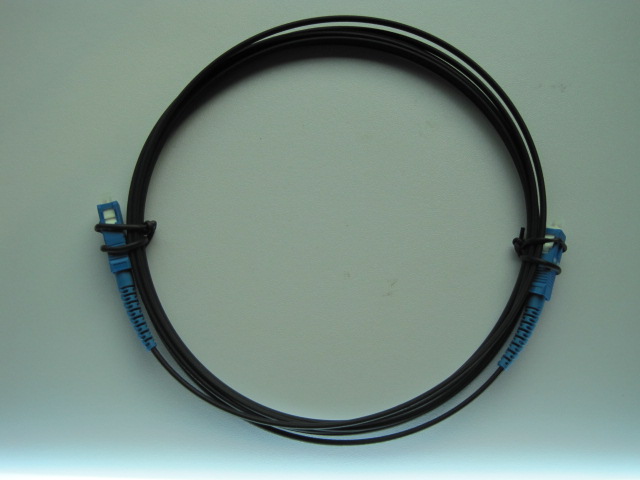

PM Fiber Patchcord Home > Product > PM Fiber Patchcord

PM Patchcord

  Product Description:
  Key Feature:                                                                            Application:

♦Low insertion loss                                                                                            ♦Fiber laser
♦High return loss                                                                                                ♦Fiber amplifier
♦High extinction ratio                                                                                          ♦Testing instruments
♦High stability and reliability                                                                                ♦Fiber labs


Specification:

    Parameter

Unit

Value

Connector Type



FC/UPC, SC/UPC,LC/UPC,MU/UPC, FC/APC, SC/APC,LC/APC

Wavelength

nm

1310, 1550

   980, 1060,

         850

         780

Insertion Loss

dB

≤0.3

≤0.5

≤0.8

≤0.8

Return loss

UPC Type

dB

≥50

Return loss

APC type

dB

≥60

Extinction Ratio at 23

dB

≥23

≥23

≥22

≥22

Fiber Type



PM1310,PM1550

PM980

PM850

PM780

Key Orientation



Slow Axis

Axis Alignment

deg

±3

Operating temperature

-20~+70

Storage temperature

-40 ~ +80


Ordering Information:



PMJP



Connector  Type (Input)



Connector                                               Type(Output)



Wavelength (nm)



Fiber cable Type



Fiber Type



Length



NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
LC=LC/UPC
LC=LC/APC
MU=MU/UPC

NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
LC=LC/UPC
LC=LC/APC
MU=MU/UPC

780
  850
  980
  1064
  1310
  1550

250=250um bare fiber
900=900um loose tube
2000=2mm loose tube
3000=3mm loose tube

PM780
PM850
PM980
PM1310
PM1550

1=1m
2=2m
X=Other
