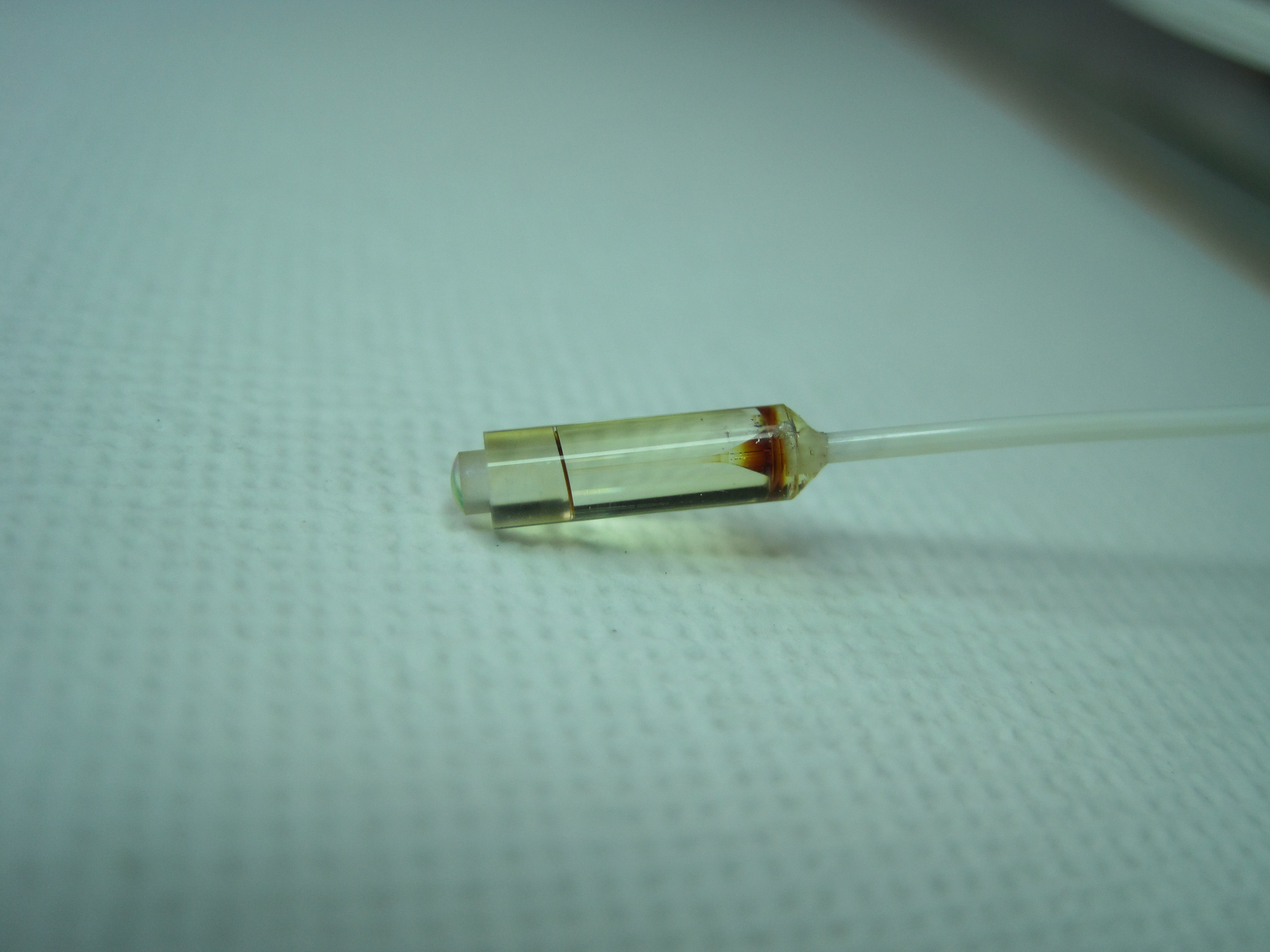

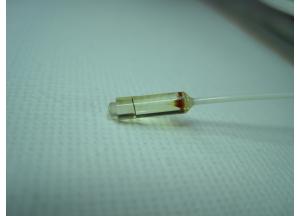

Key Features: Application:
♦High extinction ratio ♦PM Isolator Circulator
♦High stability and reliability ♦Fiber laser and PM mini components
Specification:
|
|
Parameter
|
Value
|
|
Operating wavelength(nm)
|
1310, 1550,
|
1064
|
|
Bandwidth(nm)
|
±30
|
±30
|
|
Working Distance(mm)
|
5 or specify
|
|
Typ Insertion Loss (dB)
|
0.2
|
0.25
|
|
Insertion Loss (dB)
|
≤0.25
|
≤0.3
|
|
Extinction Ratio (dB)
|
≥23
|
≥23
|
|
Return loss(dB)
|
≥60
|
≥60
|
|
Optical Power (mW)
|
≤500
|
≤300
|
|
Fiber Type
|
Panda Fiber
|
|
Dimmension (mm)
|
1.8(OD) Lens
|
3.2x10 Metal holder or 2.78x9.0 Glass tube
|
| 1.0(OD) Lens |
1.8x7 Metal holder or 1.4x 7 Glass tube
|
|
Operating Temperature(℃)
|
-5 ~ +70
|
|
Storage Temperature(℃)
|
-40~ + 85
|
|
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.
Ordering Information:
|
PMCL
|
Configuration
|
Wavelength
|
Lens Diameter
|
Working Distance
|
Pigtail Type
|
Fiber Type
|
Length
|
Connector
|
Package
|
|
|
S=Single
fiber
pigtail;
D=Dual
fiber pigtail
|
850
980
1064
1310
1550
|
1.8mm
1.0mm
|
5=5mm,
X=Specify
|
250=250um
bare fiber
900=900um
loose tube
|
5=Panda fiber
|
1m
|
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
XX=Other
|
3.2x10
2.78x9
1.8x7
1.4x7
|
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
