PM Fiber Pigtail Home > Product > PM Fiber Pigtail

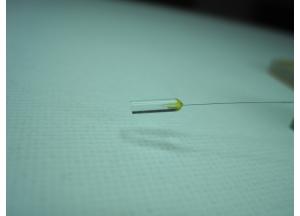

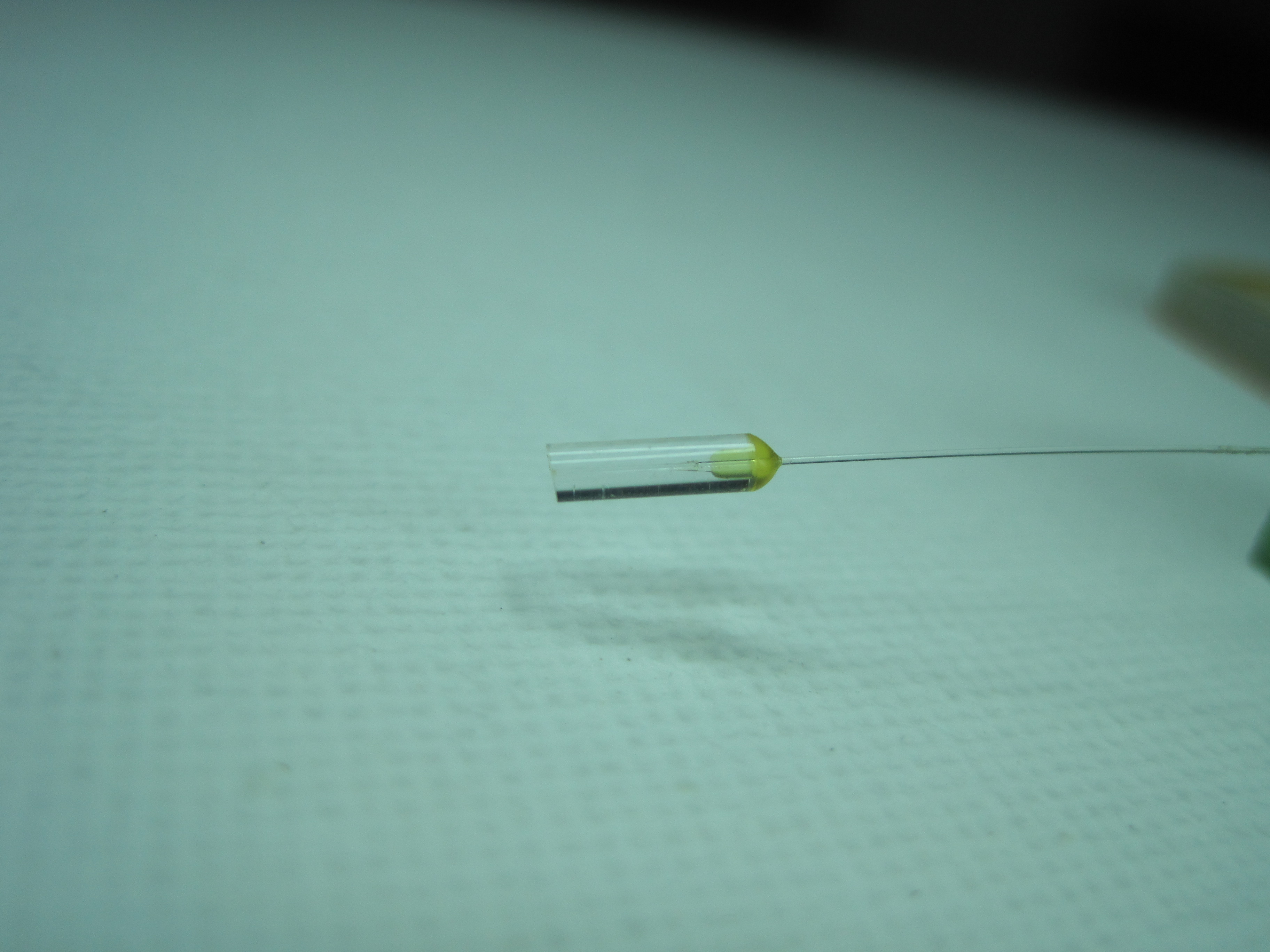

PM Fiber Pigtail

  Product Description:
  Key Features:                                                               Application:
◆Low insertion loss
PM micro component
◆High return loss
◆High extinction ratio
◆Compact size
◆Environmentally stable
◆Bellcore compliant

Specifications:
Parameter
Single Fiber
Dual Fiber
Center Wavelength(nm)
                     980,1060,1310, 1550
Capillary Diameter(mm)
1.0 or 1.8
Diameter Tolerance (mm)
± 0.005
Capillary Length (mm)
4.75 ± 0.25
5.75 ± 0.25
Polishing Angle (degree)
8° or specify
Fiber Type Combination
PM Fiber & PM Fiber, PM Fiber & SMF-28
Extinction Ratio (dB)
≥23
Scratch/Dig
10/5
AR-coating
R < 0.25% @ specified wavelength range
 Customer specificed is accepted

Ordering Information:
PMFP

Type

Capillary

Diameter

AR

Coating

Polishing

Angle

Pigtail Type

Fiber

Type

Fiber

Orientation

Length



S= Single fiber pigtail          D=Dual Fiber pigtail

1.8=1.8mm

1.0=1.0mm

  850       980    1064   1310  1550

8=8°

X=Specify

250=250um

bare fiber

5=Panda

fiber

O=O Type

A= A Type

1= 1m

X=other


For drawings, technical data or samples configuration other than stated above,  please feel

free to contact us:














                                                                      sales@lightwit.com.cn
