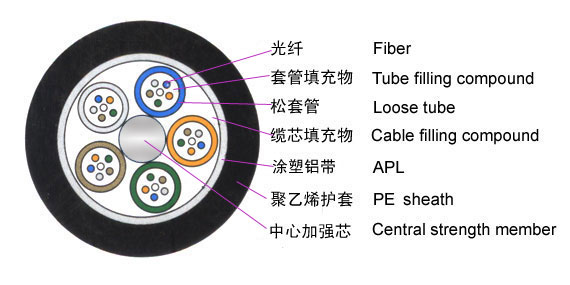

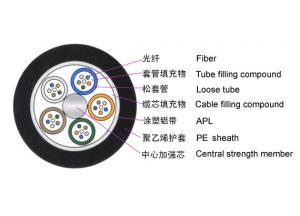

| The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene(PE) for cable with high fiber count, locates in the center of core as a metallic strength member.Tubes(and fillers)are standed around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate(APL)is applied around the cable core, which is filled with filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Features:
◆Good mechanical and temperature performance
◆High strength loose tube that is hydrolysis resistant
◆Special tube filling compound ensure a critical protection of fiber
◆Specially designed compact structure is good at preventing loose tubes from shrinking
◆PE sheath protects cable from ultraviolet radiation
◆The following measures are taken to ensure the cable waterlight
-Steel wire used as the central strength member
-Loose tube filling compound
-100% cable core filling
-APL enhancing moisture-proof
Standards:
GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics:
|
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(+20℃)
|
@850nm
|
|
|
≤3.0dB/km
|
≤3.0dB/km
|
|
@1300nm
|
|
|
≤1.0dB/km
|
≤1.0dB/km
|
|
@1310nm
|
≤0.36dB/km
|
≤0.40 dB/km
|
|
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
|
|
|
Bandwidth (Class A)
|
@850nm
|
|
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
|
|
≥1000 MHz·km
|
≥600 MHz·km
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1480nm
|
|
|
Technical Parameters:
|
Cable Type
|
Fiber Count
|
Tubes
|
Fillers
|
Cable Diameter
|
Cable Weight kg/km
|
Tensile Strength Long/Short Term N
|
Crush Resistance Long/Short Term
N/100mm
|
Bending Radius
Static
/Dynamic
mm
|
|
GYTA-2~6 Cores
|
2~6
|
1
|
4
|
10.2
|
116
|
600/1500
|
300/1000
|
10D/20D
|
|
GYTA-8~12 Cores
|
8~12
|
2
|
3
|
10.2
|
116
|
600/1500
|
300/1000
|
10D/20D
|
|
GYTA-14~18 Cores
|
14~18
|
3
|
2
|
10.2
|
116
|
600/1500
|
300/1000
|
10D/20D
|
|
GYTA-20~24 Cores
|
20~24
|
4
|
1
|
10.2
|
116
|
600/1500
|
300/1000
|
10D/20D
|
|
GYTA-26~30 Cores
|
26~30
|
5
|
0
|
10.2
|
116
|
600/1500
|
300/1000
|
10D/20D
|
|
GYTA-32~36 Cores
|
32~36
|
6
|
0
|
11.6
|
129
|
1000/3000
|
300/1000
|
10D/20D
|
|
GYTA-38~48 Cores
|
38~48
|
4
|
1
|
11.2
|
141
|
1000/3000
|
300/1000
|
10D/20D
|
|
GYTA-50~60 Cores
|
50~60
|
5
|
0
|
11.2
|
144
|
1000/3000
|
300/1000
|
10D/20D
|
|
GYTA-62~72 Cores
|
62~72
|
6
|
0
|
12.0
|
159
|
1000/3000
|
300/1000
|
10D/20D
|
|
GYTA-74~84 Cores
|
74~84
|
7
|
1
|
13.6
|
209
|
1000/3000
|
300/1000
|
10D/20D
|
|
GYTA-86~96 Cores
|
86~96
|
8
|
0
|
13.6
|
209
|
1000/3000
|
300/1000
|
10D/20D
|
|
GYTA-98~108芯
|
98~108
|
9
|
1
|
15.4
|
232
|
1000/3000
|
300/1000
|
10D/20D
|
|
GYTA-110~120 Cores
|
110~120
|
10
|
0
|
15.4
|
232
|
1000/3000
|
300/1000
|
10D/20D
|
|
GYTA-122~132 Cores
|
122~132
|
11
|
1
|
17.2
|
280
|
1000/3000
|
300/1000
|
10D/20D
|
|
GYTA-134~144 Cores
|
134~144
|
12
|
0
|
17.2
|
280
|
1000/3000
|
300/1000
|
10D/20D
|
Storage/Operating Temperature : -40℃ to + 70℃
|
