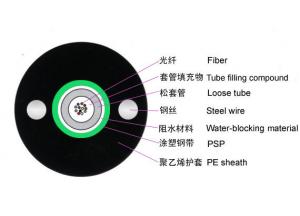

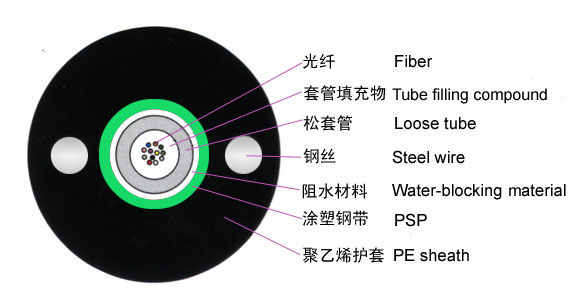

| The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Features:
◆Good mechanical and temperature performance
◆High strength loose tube that is hydrolysis resistant
◆Special tube filling compound ensure a critical protection of fiber
◆Crush resistance and flexibility
◆PSP enhancing moisture-proof
◆Two parallel steel wires ensure tensile strength
◆Small diameter, light weight and friendly installation
◆Long delivery length
Standards:
GYXTW cable complies with Standard YD/T 769-2003.
Optical Characteristics:
|
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(+20℃)
|
@850nm
|
|
|
≤3.0dB/km
|
≤3.0dB/km
|
|
@1300nm
|
|
|
≤1.0dB/km
|
≤1.0dB/km
|
|
@1310nm
|
≤0.36dB/km
|
≤0.40 dB/km
|
|
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
|
|
|
Bandwidth (Class A)
|
@850nm
|
|
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
|
|
≥1000 MHz·km
|
≥600 MHz·km
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1480nm
|
|
|
Technical Parameters：
|
Cable Type
|
Fiber Count
|
Cable Diameter
mm
|
Cable Weight
Kg/km
|
Tensile Strength
Long/Short
Term N
|
Crush Resistance
Long/Short
Term N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GYXS/GYXTW-2~12
|
2~12
|
10.0
|
105
|
600/1500
|
300/1000
|
10D/20D
|
|
GYXS/GY XTW-2~12
|
2~12
|
10.6
|
124
|
1000/3000
|
1000/3000
|
10D/20D
|
|
GYXS/GY XTW-14~24
|
14~24
|
12.5
|
149
|
1000/3000
|
1000/3000
|
10D/20D
|
|
GYXS/GY XTW-26~36
|
26~36
|
14.0
|
190
|
1000/3000
|
1000/3000
|
10D/20D
|
|
GYXS/GY XTW-38~48
|
38~48
|
15.0
|
216
|
1000/3000
|
1000/3000
|
10D/20D
|
Storage/Operating Temperature: -40℃ to +70 ℃ |
