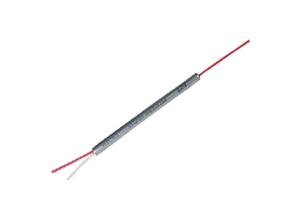

Product Description:
Wavelength Division Multiplexing(WDM) using wavelength division multiplexing equipment will be different channel modulation signal into different wavelengths of light, and use fiber channel complex. In the receiving side, a wave separation equipment at different wavelengths of light. Wavelength Division Multiplexing (WDM) using low cost, high bandwidth access, applies to peer-to peer, Ethernet , SONET ring, and other popular network structure, particularly suitable for short-distance, high-bandwidth, access all points of communication-intensive applications, such as building or building between the network traffic, Passive optical fiber devices typically include adapters, optical fiber activities connectors, fiber patch panels, optical attenuator, optical splitter, optical wavelength division multiplexing, optical fiber optics, and others. Lightwit Photonics company takes “Quality and Credit come first” as its base of exist and development. ISO9001 and CE assure the qualities for our customers,. Firmly through quality product line, effective research, manufacture and market management and with nearly a decade accumulation on industry insight and expertise, we have forged strong ties to customers from all over the world.
Key Features:
◆Multiplexing/demultiplexing
◆CATV fiber
◆Fiber optical test equipment
◆Bi-directional single transmission
◆Bi System Compatibility
◆Fiber amplifier
◆All-fiber structure
◆High reliability
◆Standards applicable to the 1310 nm and 1550 nm light source
◆Excellent optical properties
Application:
◆Urban Intelligent Traffic Monitoring System (ITS)
◆Highway monitoring/communication system
◆Electricity / water safety monitoring system
◆Large-scale mining enterprises Security Monitoring System
◆Building control system
◆Military communications
Technical parameters:
|
Project:
|
Units
|
Indicators
|
|
Center wavelength:
|
nm
|
1310/1480, 1310/1510,1310/1530 ,
1310/1550, 1310/1570, 1310/1590
|
|
Bandwidth:
|
nm
|
±15
|
|
The largest insertion loss:
|
dB
|
0.5
|
|
The smallest wavelength isolation:
|
dB
|
15
|
|
The greatest polarization sensitivity:
|
dB
|
0.15
|
|
Minimum direction:
|
dB
|
55
|
|
Maximum Temperature Coefficient:
|
dB/°C
|
0.002
|
|
Temperature:
|
/°C
|
-40~+85
|
|
Storage Temperature:
|
/°C
|
-40~+85
|
|
Dimension:
|
Mm
|
A:3.0*55(L)(250 μ m Bare Fiber)
B:3.0*55(L)(250 μ m Bare Fiber)
C:90(L)*15(W)*7(H)(900u loose tube)
D:105.2(L)*78.5(W)*12.7(H)(900u loose tube)
E: 90(L)*15(W)*7(H)(μ m3.0mm PVC tube)
F: 105(L)*78.5(W)*12.7(H)(μ m3.0mm PVC tube)
|
Reliability Test conditions:
|
High Temperature：
|
85 ± 2 °C, 5000 hours
|
|
Damp Heat Test:
|
75± 2 °C /90±5%RH, 5000 hours
|
|
Low Temperature Test:
|
-40 5%, 5000 hours
|
|
Water immersion Test:
|
43±2/PH5.5 ±0.5, 168 hours
|
|
Temperature Cycling Test:
|
-40 ±2 °C ~85°C±2, 500 cycle
|
|
Vibration Test:
|
10Hz to 2000Hz, vibration rate of 1.52mm, three direction, fours/ direction
|
|
Impact Test:
|
1.8m high, three directions, 8/direction
|
Accessories in the package:
|
User Manual
|
Maintenance Card
|
Qualified Certification
|
|
Specification
|
|
1 copy
|
1 copy
|
1 copy
|
|
1 copy
|
Ordering information:
|
No.
|
Wavelength
|
Isolation grade
|
Pigtail length
|
Package Dimension
|
|
LW-WDM-1310/
|
1480nm.
1510nm.
1530nm.
1550nm.
…..
|
A,
B,
H
|
1=1M,
2=2,
|
A:μ3.0*55（L）（250u bare fiber）
B: μ3.0*55(L)(900u loose tube)
C: 90(L)*15(W)*7(H)(900u loose tube)
D:105.2(L)*78.5(W)*12.7(H)(900u loose tube)
E:90(L)*15(W)*7(H)(μ3.0mm PVC tube)
F:105.2(L)*78.5(W)*12.7(H)( μ3.0mm PVC tube)
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
|
