| Product Description:

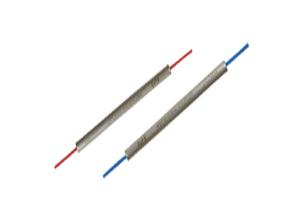

Lightwit’s Add/Drop filters are fabricated with thin-film interference coatings to achieve 100GHz narrow bandwidth channel filtering at ITU wavelength. These DWDM devices have low insertion loss, high channel isolation and stable environmental performance.
Key Features:
◆Low insertion loss
◆Excellent channel isolation
◆Epoxy-free optical path
◆Enviromentally stable and reliable
◆Low profile packaging
◆Telcordia (Bellcore) Compliant
Applications:
◆CWDM systems
◆Metro/Access communication networks
◆Fiber-optic instruments
Specification:
|
Parameter
|
Specification
|
|
Channel Center Wavelength
|
1430-1610
(1431-1611)nm
|
|
Channel Spacing
|
20nm
|
|
Min Channel Passband
|
c 7.0nm
|
|
Max Add/Drop Channel Insertion Loss
|
0.70dB(0.50dB typ.)
|
|
Max Add/Drop Channel Insertion Loss Variation
|
0.20dB
|
|
Max Remaining Channel Insertion Loss
|
0.40dB(0.30dB typ.)
|
|
Min Adjacent Channel lsolation
|
30dB
|
|
Min Non-adjacent Channel lsolation
|
40dB
|
|
Min Remaining Channel Isolation
|
12dB
|
|
Max Insertion Loss Temperature Sensitivity
|
0.18dB
|
|
Min Directivity
|
50dB
|
|
Min Return Loss
|
50dB
|
|
Max Polarization Dependent Loss
|
0.10ps
|
|
Max Polarization Mode Dispersion
|
0.10ps
|
|
Max Power Handling
|
500mW
|
|
Max Tensile Load
|
5N
|
|
Operating Temperature
|
-40 to +85
|
|
Storage Temperature
|
-40 to +85
|
|

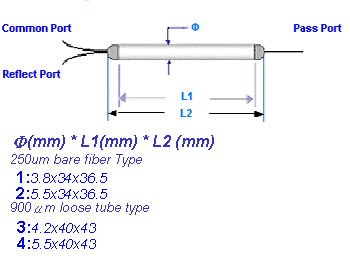

Package Dimension(DxL)
|
Refer to drawing
to
|
|
Fiber Type
|
|
Physical Dimension:
Ordering information:
|
No.
|
Passing Wavelengthe
|
Stopping Wavelength
|
Band wide
|
Package
|
|
LW-WF-
|
1310nm
1510nm
1550nm
1570nm
|
1310nm
1550nm
1570nm
|
±5
±10
±15
±20
|
A:μ3.0*55（L）（250u bare fiber）
B: μ3.0*55(L)(900u loose tube)
C: 90(L)*15(W)*7(H)(900u loose tube)
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
|
