| Passive optical devices for optical fiber transmission system to provide the media, such as linking and fixed role. Fiber is divided into two categories: single-mode fiber and multi-mode fiber. Small single-fiber transmission loss, mainly used in long-distance transmission; multimode fiber transmission loss of the main short distance transmission(within 2 KM). Passive optical fiber devices typically include adapters, optical fiber activities connectors, fiber patch panels, optical attenuator, optical splitter, optical wavelength division multiplexing, optical fiber optics, and others. Lightwit Photonics company takes “Quality and Credit come first” as its base of exist and development. ISO9001 and CE assure the qualities for our customers,. Firmly through quality product line, effective research, manufacture and market management and with nearly a decade accumulation on industry insight and expertise, we have forged strong ties to customers from all over the world.

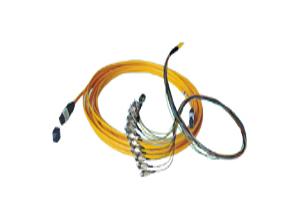

Key Features:
◆For communications networks wiring systems, wiring systems to achieve the appearance and convenience
◆Ribbon cable for wiring system with the continuation of live joints
◆Ribbon cable pigtail from 4 Core/Core 6/8/12-core optical fiber
◆For bundles cable wiring system with the continuation of live joints
◆Pigtail cable bundles from 4 core/6 core/ 8 core/12 core corresponding with the number of connector is processed
◆Banqiqi branch of the fiber optic cable after corresponding with the number of connector is processed
◆Fan-out by some of the 0.9 mm and 2.0 mm jacket optional
◆Products meet national and international industry standards GR-1221 universal norms
◆Apply to the telecommunications and data networking in the indoor applications
Application:
◆Optical fiber communication network
◆Fiber Broadband Access Network
◆CATV fiber
◆Optical instrumentation
◆Fiber LAN
Technical Parameters:
|
Type
|
Insertion Loss (GB)
|
Insertion Loss (Enterprise)
|
Insertion Loss (Typical)
|
Return Loss (GB)
|
Return Loss (Enterprise)
|
Return Loss (Typical)
|
|
PC
|
≤ 0.5dB
|
≤ 0.2dB
|
≤ 0.1dB
|
≥40dB
|
≥45dB
|
≥45dB
|
|
UPC
|
≤ 0.5dB
|
≤ 0.2dB
|
≤ 0.1dB
|
≥45dB
|
≥50dB
|
≥50dB
|
|
APC
|
≤ 0.5dB
|
≤ 0.2dB
|
≤ 0.2dB
|
≥60dB
|
≥65dB
|
≥65dB
|
Reliability Test conditions:
|
Pilot projects:
|
Test conditions
|
|
Temperature and
Humidity aging:
|
Temperature is 85℃ . relative humidity is85%, Insertion loss≤0.1dB in 14 days
|
|
Temperature cycle:
|
Temperature is -40℃~+70℃,relative humidity is 10%~80%, 42 cycles, Insertion loss≤0.1dB in 14 days
|
|
Soaking:
|
Temperature is 43℃, PH5.5, Insertion loss≤0.1dB in 7 days
|
|
Vibration:
|
Amplitude is 1.52mm, frequency is 10Hz~55Hz, three directions of the two hour insertion loss≤0.1dB
|
|
Bending load:
|
0.454kg load 100 cycles(Jacketed) insertion loss≤0.1dB
|
|
Load reverse:
|
0.454kg load 10 cycle(Jacketed) insertion loss≤0.1dB
|
|
Anti-Tension:
|
0.23kg Rally(bare fiber), 1.0kg(jacketed) insertion loss≤0.1dB
|
|
Impact:
|
1.5m high, three direction, 8 time/direction, Insertion loss≤0.1dB
|
|
Reference
Standards:
|
Bellcore TA-NWT-001209 Insertion loss≤0.1dB
|
Raw Material Components:
Ferrule: high-quality, high-intensity Zirconia
Ceramic casing, phosphor bronze sleeve
External parts: a variety of models to choose from Seiko. Apramycin the United States. MOLEX the United States. Domestic
Corning optional rage of sizes(Φ0.9mm., Φ2.0mm , Φ0.3mm)
Environmental requirements:
Ambient temperature: -40℃~+85℃
Storage temperature: -40 ℃~+95℃
Ordering information:
|
No.
|
Connector Stype
|
Core Number
|
Mode
|
External Diameter(mm)
|
Length
|
|
LW-Pigtail-
|
FC/PC-FC/PC,
SC/UPC-FC/APC
SC/PC-FC/APC
FC/PC-FC/APC
SC/PC-SC/APC
……
|
1=1,
2=2
|
1=SM
2=MM(62.5/125)
3=MM(50/125)
4=MM(100/140)
|
Φ0.9
Φ2.0
……
|
L1M
L2M
L3M
L4M
……
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
|
