Parameter content
|
Function description
|
|
Lens
|
CCD Module
|
Can be chosen
|
|
Lens Size
|
Auto white balance、Electronic shutter、Auto aperture
、AGC、Automatic backlight compensation
|
|
Video
|
Video Standard
|
Support NTSC or PAL Format
|
|
Video Compression
|
Standard H.264
|
|
Frame Rate
|
25 Frame/Sec.（PAL），30 Frame/Sec.（NTSC）(Adjustable Downwards)
|
|
Image Adjustment
|
Adjustment for Brightness, Contrast, Chroma, Saturation, and Image Quality Level
|
|
Video Coding Size
|
PAL format
D1：704×576、Half D1：704×288、CIF：352×288
NTSC format
D1：720×480、Half D1：704×240、CIF：352×240
|
|
Video Stream Average Bandwidth
|
200 kbps (Resolution 352×288 and 25 Frames per channel)
|
|
Time Delay
|
Less than 200 millisecond (LAN)
|
|
Audio
(chosen)
|
Audio Input
|
Line input and output interface
|
|
Audio Compression
|
Standard G.722, Audio sampling rate 8kbps～64kbps，Bit rate 8kbps～64kbps
|
|
Network
|
Network Interface
|
RJ-45 10/100M
|
|
Performance
|
Maximum Output Frame Rate is 30fps and Minimum Network Bandwidth Usage is 32Kbps
|
|
Dynamic Domain Name
|
Built-in Dynamic Domain Name Client Side and Second-Level Domain Name Convenient for Dynamic IP Users
|
|
Number of Person watched
|
10（Directly connect to IP camera）
|
|
Network Monitoring way
|
IE Watching、Configuration 、Updating
|
|
PPPoE
|
Can dial up with PPPoE access to internet
|
|
Alarm
|
Event Trigger and Action
|
Time/Alarm Input/Motion Detecting/Video Loss Action: Electrical Relay Output Control Peripheral Equipment and alarm notification
|
|
Alarm Input Interface
|
One channel alarm input (With Threshold voltage3.1V-4.1V)
|
|
After triggering action
|
Relay output control device outside
|
|
Alarm Output Interface
|
One channel relay alarm output
|
|
Control
|
I/O control interface
|
With one RS-485 interface，support Transparent serial transmission
|
|
Other
|
CPU
|
High-Performance ARM+DSP Processor
|
|
OS
|
Real-Time Embedded LINUX Operating System
|
|
Security
|
3-Layer Password Protection
|
|
Working temperature
|
5 ~ 60 ℃
|
|
Work humidity
|
20 ~ 80%
|
|
Input voltage
|
DC12V /1A
|
|
Power
|
Below 3W
|
|
Installing Dimension
|
134.3mm(W)*86.0mm(H)*50.8mm(D)
|
|
Central
(chosen)
|
analog Video direct output
|
Support
|
|

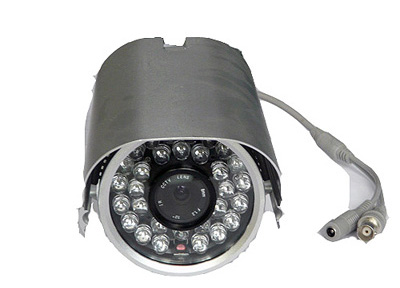

Infrared
|
30 meters infrared
|
24 infrared lights
|
