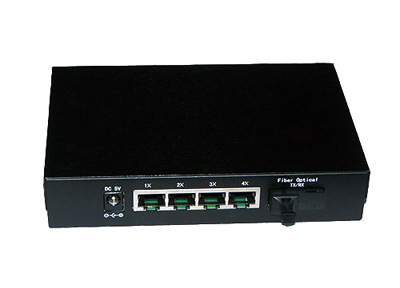

LW-1004S/LW-1004FS/LW-2004S/LW-2004FS is a full-featured Ethernet Switch that provides Ethernet direct connection to local network or individual PC with building 4-port Switch. It also provides 4 10/100Mbps UTP/STP RJ-45 ports with auto-MDI/MDIX and 1 fiber port and powerful functions such as supporting Web management, intelligent matching among working mode, port, VLAN, prority, data rate and security of the interface. LW-1004S/LW-1004FS/LW-2004S/LW-2004FS uses advanced Fast Ethernet single-chip solution with complete set of industry standard features for high-speed internet access. LW-1004S/LW-1004FS/LW-2004S/LW-2004FS offers easy installation and cost-effective connection for corporate, SOHO(small office/home office) and residential users. This Switch can be used on the desktop and rack-mount.
Key Features:
◆19 inch standard steel case
◆Support 4 10/100 auto-detect Half/Full duplex RJ-45 ports and 1 fiber port.
◆Support potr-based VLAN and MTU VLAN function
◆Support Port Security , Broadcast Storm control, Bandwidth Control(the minimum granularity is 128Kbps).
◆Support data packet length up to 1552bytes.
◆Support MAC address auto-learning.
◆Support transmission by one single fiber .
◆Provides non-blocking and non-head-of-line-blocking forwarding
◆Easy read LED indications for installation and operation diagnostics
Technical Parameter:
|
Data Transfer Rates:
|
Ethernet:10Mbps (Half Duplex), 20Mbps(Full Duplex)
Fast Ethernet: 100Mbps(Half Duplex), 200Mbps(Full Duplex)
|
|
Protocol:
|
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3x Full Duplex Flow Control
|
|
Dynamic cache:
|
2M
|
|
MAC Address table:
|
4K
|
|
MAC address aging time
|
10s~1000000s(default value:300)
|
|
Transfer Method
|
Store-and-Forward
|
|
LED Indicators
|
Power, Link/Act
|
|
Connector
|
RJ-45*5/8
|
|
Input Voltage
|
110VAC~275VAC,50/60Hz or 48VDC(selectable)
|
|
Power loss
|
≤8W
|
|
Power Consumption
|
1.0W
|
|
Temperature:
|
Operating Temperature :-10℃~+50℃
Storage Temperature: -25℃+55℃
|
|
Humidity
|
5%~9%(non-condensing)
|
|
Regulations
|
PCC part 15 class B,CE
|
|
Dimensions(app.)
|
233mm(length)142*mm(width)45*mm(height)
|
|
Net Weight(app.)
|
g
|
Accessories in the package:
|
User Manual
|
|
Qualified Certification
|
Power Adapter
|
Specification
|
|
1 copy
|
|
1 copy
|
1
|
1 copy
|
Ordering information:
|
No.
|
Description
|
|
LW1008
|
8 TP port
|
|
LW1016
|
16 TP port
|
|
LW1024
|
24 TP port
|
|
LW-2003FS-1F2T
|
1FX port, 2 TP port
|
|
LW-2004FS-2F2T
|
2 FX port, 2 TP port
|
|
LW-2005FS-1F4T
|
1 FX port , 4 TP port
|
|
LW-2006FS-2F4T
|
2 FX port, 4 TP port
|
|
LW-2008FS-1F7T
|
1 FX port , 7 TP port
|
|
LW-2009FS-1F8T
|
1 FX port, 8 TP port
|
|
LW2016FS-1F15T
|
1 FX port , 2 TP port
|
|
LW2017FS-1F16T
|
1 FX port, 2 TP port
|
|
LW3008FS-1F7T
|
1 FX port, 7 TP port, Support SNMP
|
|
LW3009FS-1F8T
|
1 FX port , 8 TP port, Support SNMP
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
|
