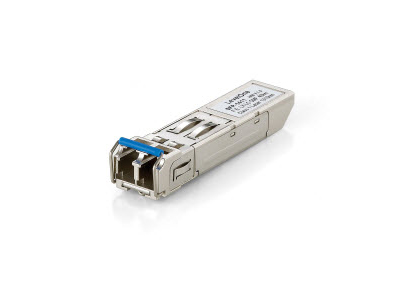

| 1.25G BIDI Simple LC Fiber |
| |
|
| |
Product Description： |
| |
Key Features:
◆ Single Mode bi-directional Transmission
◆ SFP Multi-source Package with LC Receptacle
◆ Standard 1.25Gb/s Data Links
◆ Hot-Pluggable Capability
◆ Single +3.3V Power Supply
◆ Isolation > 30dB, Cross Talk < -45dB
◆ Compliant with Specifications for IEEE802.3Z
◆ Compliant with Bellcore TA-NWT-000983
◆ Eye Safety Designed to Meet Laser Class1,
◆ Compliant with IEC60825-1
◆ Compliant with CPRI/Interface OBSAI
Applications:
◆ GSM digital fiber repeater
◆ Gigabit Ethernet
◆ Fiber Channel
◆ WDM Application
Ordering Information:
|
Part No.
|
Product Description
|
|
LWFTR-3512L-10
|
1310nm/1550nm, 1.25Gbps, 10km, SFP with Spring-Latch, -40°C~+85°C
|
|
LWFTR-5312L-10
|
1550nm/1310nm, 1..25Gbps, 10km, SFP with Spring-Latch, 40°C~+85°C
|
|
LWFTR-3512L-20
|
1310nm/1550nm,1.25Gbps, 20km, SFP with Spring-Latch, -40°C~+85°C
|
|
LWFTR-5312L-20
|
1550nm/1310nm,1.25Gbps, 20km, SFP with Spring-Latch, -40°C~+85°C
|
|
LWFTR-3412L-10
|
1310nm/1490nm, 1.25Gbps, 10km, SFP with Spring-Latch, -40°C~+85°C
|
|
LWFTR-4312L-10
|
1490nm/1310nm, 1.25Gbps, 10km, SFP with Spring-Latch,- 40°C~+85°C
|
|
LWFTR-3412L-20
|
1310nm/1490nm, 1.25Gbps, 20km, SFP with Spring-Latch, -40°C~+85°C
|
|
LWFTR-4312L-20
|
1490nm/1310nm,1.25Gbps, 20km, SFP with Spring-Latch, -40°C~+85°C
|
|
LWFTR-4512L-10
|
1490nm/1550nm, 1.25Gbps, 10km, SFP with Spring-Latch,-40°C~+85°C
|
|
LWFTR-5412L-10
|
1550nm/1490nm, 1.25Gbps, 10km, SFP with Spring-Latch, -40°C~+85°C
|
|
LWFTR-5412L-20
|
1550nm/1490nm,1.25Gbps, 20km, SFP with Spring-Latch, -40°C~+85°C
|
|
LWFTR-4512L-20
|
1490nm/1550nm,1.25Gbps, 20km, SFP with Spring-Latch, -40°C~+85°C
|
|
| |
|
|
|
|
|
