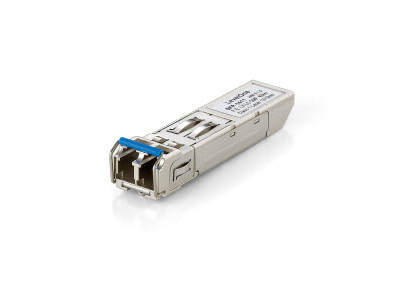

| The LWFTR-SFP1.25G-3012L series SFP transceiver is high performance, cost effective module supporting dual data-rateof1.25Gbps/1.0625Gbps and from 10km to 20km transmission distance with SMF.
The transceiver consists of two sections: The transmitter section incorporates a FP laser. And
the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier
(TIA). All modules satisfy class I laser safety requirements.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is
provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to
indicate the loss of an input optical signal of receiver.
The standard serial ID information compatible with SFP MSA describes the transceiver’s
capabilities, standard interfaces, manufacturer and other information. The host equipment can
access this information via the 2-wire serial CMOS EEPROM protocol. For further information,
please refer to SFP Multi-Source Agreement (MSA).
The SFP transceivers are compatible with RoHS.
Key Features:
◆ Dual data-rate of 1.25Gbps/1.0625Gbps operation
◆ 1310nm FP laser and PIN photodetector
◆10km ~20km transmission with SMF
◆ Standard serial ID information Compatible with SFP MSA
◆ SFP MSA package with duplex LC connector
◆ With Spring-Latch for high density application
◆ Very low EMI and excellent ESD protection
◆ +3.3V single power supply
◆ Operating case temperature:
Standard:0 to +70°C Industrial: -40 to +85°C
Applications:
◆ Switch to Switch interface
◆ Switched backplane application
◆ Router/Server interface
◆ Other optical transmission systems
Standard:
◆ Compatible with SFP MSA
◆ Compatible with IEEE 802.3z
◆ Compatible with ANSI specifications for Fiber Channel
◆ Compatible with FCC 47 CFR Part 15,Class B
◆ Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
◆ Compatible with Telcordia GR-468-CORE
Ordering Information:
|
Part No.
|
Product Description
|
|
LWFTR-3012L-10
|
1310nm, 1.25Gbps, 10km, SFP with Spring-Latch, 0℃~+70℃
|
|
LWFTR-3012L-10Li
|
1310nm, 1.25Gbps, 10km, SFP with Spring-Latch, -40℃~+85℃
|
|
LWFTR-3012L-20
|
1310nm, 1.25Gbps, 10km, SFP with Spring-Latch, 0℃~+70℃
|
|
LWFTR-3012L-20Li
|
1310nm, 1.25Gbps, 10km, SFP with Spring-Latch, -40℃~+85℃
|
|
