Product Description： |
| |

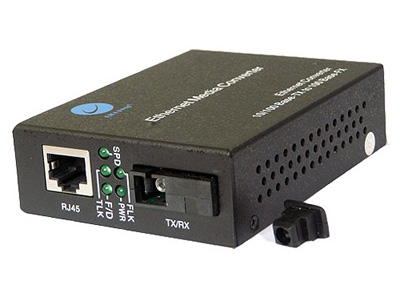

Product Introduction:
The media converter transform the transmission media of Ethernet signal from CAT5 to optical fiber. it can extend the transmission distance to several kilometer or hundred kilometer.
Using media converter is a economical solution to achieve long distance transmission base on current status.
Brief introduction:
This product supports IEEE802.3z 1000Base-Tx/Fx protocol, as well as full duplex and half duplex mode. This manual is for 1000M transceivers.
Installation
1. Interface
RJ-45 interface
The transmission media adopts CAT5 twisted-pair with typical length of 1000 meter. It features the function of automatically identifying the through line and cross wire
Fiber interface
SC/ST fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the two sets of optical transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely "TX-RX", "RX-TX" (direct butting for single optical fiber).
2. Connection
The network device (work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack of optical transceiver through twisted-pair. And the multi/single mode fiber is connected to SC/ST fiber interface of the optical transceiver. Then switch on. The corresponding LED is on for correct connection. (See the table below for the LED indicator lamp)
Technical parameters:
1. Standard Protocol: IEEE 802.3z 1000Base-TX/FX standard
2.Connector:oneUTPRJ-45connector,oneSC/STconnector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter:
outside: 5V DC 2A
built-in: 110-265V AC 48VDC
5. Environmental temperature: 0℃-60℃
6. Relative humidity: 5%-90%
7. TP cable: Cat5 UTP cable
8. Transfer fiber:
multi-mode: 50/125, 62.5/125 or 100/140μm
single mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm
Ordering information:
|
No.
|
Rate
|
Wavelength
|
Mode
|
Distance
|
|
LW-MC-M2
|
10/100M
|
780nm
|
Multimode
|
2km
|
|
LW-MC-M5
|
10/100M
|
850/1310nm
|
Multimode
|
5km
|
|
LW-MC-S10
|
10/100M
|
1310nm
|
Singlemode
|
10km
|
|
LW-MC-S25
|
10/100M
|
1310nm
|
Singlemode
|
25km
|
|
LW-MC-S40
|
10/100M
|
1310nm
|
Singlemode
|
40km
|
|
LW-MC-S60
|
10/100M
|
1310nm
|
Singlemode
|
60km
|
|
LW-MC-S80
|
10/100M
|
1550nm
|
Singlemode
|
80km
|
|
LW-MC-S100
|
10/100M
|
1550nm
|
Singlemode
|
100km
|
|
LW-MC-S120
|
10/100M
|
1550nm
|
Singlemode
|
120km
|
|
LW-MC-S10
|
1000M
|
1310nm
|
Singlemode
|
10km
|
|
LW-MC-S20
|
1000M
|
1310nm
|
Singlemode
|
20Km
|
|
LW-MC-S30
|
1000M
|
1310nm
|
Singlemode
|
30km
|
|
LW-MC-S40
|
1000M
|
1550nm
|
Singlemode
|
40km
|
|
LW-MC-S50
|
1000M
|
1550nm
|
Singlemode
|
50km
|
|
LW-MC-S70
|
1000M
|
1550nm
|
Singlemode
|
70km
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
|
| |
|
|
|
|
|
|
|
