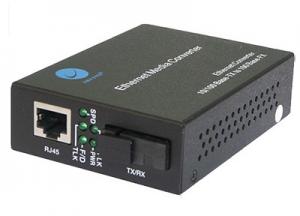

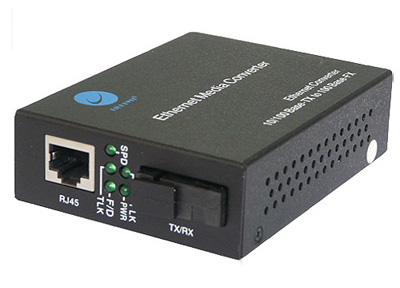

| This series converters are designed to meet the massive needs for Gigabit network deployment and able to extend a copper based Gigabit network via fiber cable to a maximum distance up to 80KM.
This Series converters are fully compliant with IEEE802.3z & 802.3ab standards. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
Key Features:
1000Base-T to 1000BASE-SX/LX Converter
Standard: IEEE802.3z & 802.3ab
Interface: 1* RJ-45 connector / 1* SFP Slot
MDI/MDIX Auto-Crossover supported
LED: Power, DUP, FP-LINK, RX, 1000, TX
Plug-and-Play installation
Support Jumbo Frame (64-9216 Byte)
Technical parameters:
1. Standard Protocol: IEEE 802.3z 1000Base-TX/FX standard
2.Connector:oneUTPRJ-45connector,oneSC/STconnector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter:
outside: 5V DC 2A
built-in: 110-265V AC 48VDC
5. Environmental temperature: 0℃-60℃
6. Relative humidity: 5%-90%
7. TP cable: Cat5 UTP cable
8. Transfer fiber:
multi-mode: 50/125, 62.5/125 or 100/140μm
single mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm
Ordering information:
|
No.
|
Rate
|
Wavelength
|
Mode
|
Distance
|
|
LW-MC-M2
|
10/100M
|
780nm
|
Multimode
|
2km
|
|
LW-MC-M5
|
10/100M
|
850/1310nm
|
Multimode
|
5km
|
|
LW-MC-S10
|
10/100M
|
1310nm
|
Singlemode
|
10km
|
|
LW-MC-S25
|
10/100M
|
1310nm
|
Singlemode
|
25km
|
|
LW-MC-S40
|
10/100M
|
1310nm
|
Singlemode
|
40km
|
|
LW-MC-S60
|
10/100M
|
1310nm
|
Singlemode
|
60km
|
|
LW-MC-S80
|
10/100M
|
1550nm
|
Singlemode
|
80km
|
|
LW-MC-S100
|
10/100M
|
1550nm
|
Singlemode
|
100km
|
|
LW-MC-S120
|
10/100M
|
1550nm
|
Singlemode
|
120km
|
|
LW-MC-S10
|
1000M
|
1310nm
|
Singlemode
|
10km
|
|
LW-MC-S20
|
1000M
|
1310nm
|
Singlemode
|
20Km
|
|
LW-MC-S30
|
1000M
|
1310nm
|
Singlemode
|
30km
|
|
LW-MC-S40
|
1000M
|
1550nm
|
Singlemode
|
40km
|
|
LW-MC-S50
|
1000M
|
1550nm
|
Singlemode
|
50km
|
|
LW-MC-S70
|
1000M
|
1550nm
|
Singlemode
|
70km
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
|
