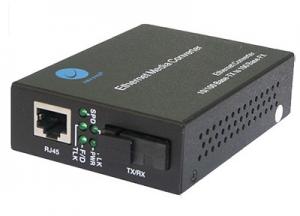

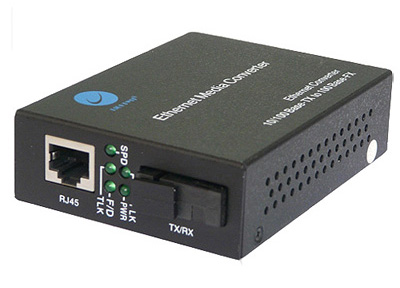

The LW101series fiber optic media converter with external power supply and SC connector is 10/100M auto-adaptation Ethernet fiber optic media converter, supporting the 10/100BASE-TX twisted-pair electrical signal and the 100BASE-FXX light signal interconversion. It expands the network transmitting range limit from the copper wire 100 meters to 2 kilometers (multi- model optical fiber)；120 kilometers (single model optical fiber), and can easily realize the link between HUB, SWITCH, the server, the terminal and long-distance terminal. LW101 series Ethernet fiber optic media converter support plug and play, which means that it can work either independently or with others in a rack case.
When Lightwit media converter is connected to fast Ethernet switchboard with the auto negotiation function, the media converter will the automatically select full duplex or the half-duplex pattern to ensure the maximum transmission band width. When failure appears in the optical fiber link, the Missinglink will provide accurate reports to the network management system. If redundant link on the switchboard is set to simultaneous co-operating, it can realize the redundant link automatic activation function. With internal high-level exchanging engine to control mistake dissemination effectively, with MAC address self-learning, self-renewal function to provide quick and stable transmission. With ultra wide switching power supply, it can effectively resist the instability of the external voltage to provide the stable fiber optic transmission and the link exchange.
This stand-alone media converter has external power source. When the customers need many media converters, they can obtain the standard-size engine case by Lightwit with extremely low cost. The module type media converter can be installed on the standard rack. With internal power supply system, it can hold 16 medium switches at most. In to the situation requesting strict reliability, the second redundant power source can be installed to provide the higher reliability.
Key Features:
◆Auto-adaptation 10Mbps and 100Mbps, convenient for network updating
◆With distinct IC IP113 HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control, decrease of broadcast storm
◆With famous brand optical-electronic-integration module providing excellent optical and electrical properties to ensure reliable data transmission and long working life﹡Speed 10/100M
◆Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism
◆Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation
◆Single RJ-45 electrical port NIC/HUB, auto cross-identification, link to computer network cards or switches or HUB
◆Supporting the switches to choose between 10/100Mbps store-and forward and straight-through transmission pattern(distinct)
◆Supporting 1600byte super data packet transmission
◆Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission and full/half duplex, data rate
◆With more than 50,000 hours MTBF, complying with telecom operating standard
◆Ultra low power dissipation(< 2.5W, Input:AC140 ~ 260V),low heat, long-time stable work
◆Supporting choosing optical ports from dual fiber(MM),dual fiber(SM),single fiber(SM)
Technical Parameter:
|
Access Method:
|
10/100Mbps
|
|
Standard:
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u, 100Base-TX/FX Fast Ethernet, IEEE8002.3x Flow control, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
|
|
Wavelength:
|
850nm/1310nm/1550nm
|
|
Distance:
|
Single Fiber SM:
CAT5:100m
|
|
PORT:
|
1 RJ45 Connector: Connecting with STP/UTP Cat5
Optical Connector: MM-SC or ST(fiber dimension: 50,62.5/125μm)
SM-SC or FC (fiber dimension : 9/125μm)
Single Fiber SM-SC/FC(fiber dimension: 9/125μm)
|
|
Conversion Method:
|
Media conversion, store-and forward/straight-through
|
|
MAC Address Table:
|
1K
|
|
Buffer Size:
|
1Mbit
|
|
Flow Control:
|
Duplex: flow control; Half duplex; back pressure
|
|
Time Delay:
|
Store-and-Forward: 9.6us, Straight-through: 0.9us
|
|
BER:
|
<1/1000000000
|
|
LED Indicator Lamps:
|
POWER, FX LINK/ACT(fiber link),
FDX(FX-full duplex), TP LINK/ACT(twisted pair link),
TP 100(TP 100M data rate), FX100(FX100M data rate)(external power)
|
|
Power Supply:
|
DC5V 1A(external power), AC220 0.5A/DC-48(internal power)
|
|
Power Dissipation:
|
<2.5W
|
|
Operating Temperature:
|
0~50℃
|
|
Humidity:
|
5%~90%
|
|
Storage Temperature:
|
-40~70℃
|
|
Storage Humidity:
|
5%~90% no coagulation
|
|
Weight:
|
Net weight: kg(cabinet); kg(power pack)
Gross weight: kg(external power)
Net weight: kg(cabinet); kg(power pack)
Gross weight: kg()
|
|
Dimension:
|
25mm (H)* 70mm (W)* 93mm (D)(external power)
25mm (H)* 22mm (W)* 77mm (D)(module card)
|
Optical Parameters:
|
Mode
|
Wavelength
(nm)
|
Transmission
Distance
(km)
|
Optical
Power
(dBm)
|
Receiving
Sensitivity
(dBm)
|
Saturation
(dBm)
|
Loss
(dB/km)
|
|
Mm
|
780
|
2
|
-18.5~-14
|
-31
|
-14
|
3
|
|
Mm
|
850
|
2
|
-18.5~-14
|
-31
|
-14
|
3
|
|
Sm
|
1310
|
0~25
|
-15~-18
|
-31
|
-8
|
0.5
|
|
Sm
|
1550
|
0~25
|
-11~-5
|
-31
|
-5
|
0.5
|
|
Sm
|
1310
|
10~60
|
-5~0
|
-35
|
-3
|
0.5
|
|
Sm
|
1550/DFB
|
10~60
|
-5~0
|
-35
|
-3
|
0.5
|
|
|
Accessories in the package:
|
User Manual
|
Maintenance Card
|
Qualified Certification
|
Power Adapter
|
Specification
|
|
1 copy
|
1 copy
|
1 copy
|
1
|
|
Ordering information:
|
No.
|
Rate
|
Wavelength
|
Mode
|
Distance
|
|
LW-MC-M2
|
10/100M
|
780nm
|
Multimode
|
2km
|
|
LW-MC-M5
|
10/100M
|
850/1310nm
|
Multimode
|
5km
|
|
LW-MC-S10
|
10/100M
|
1310nm
|
Singlemode
|
10km
|
|
LW-MC-S25
|
10/100M
|
1310nm
|
Singlemode
|
25km
|
|
LW-MC-S40
|
10/100M
|
1310nm
|
Singlemode
|
40km
|
|
LW-MC-S60
|
10/100M
|
1310nm
|
Singlemode
|
60km
|
|
LW-MC-S80
|
10/100M
|
1550nm
|
Singlemode
|
80km
|
|
LW-MC-S100
|
10/100M
|
1550nm
|
Singlemode
|
100km
|
|
LW-MC-S120
|
10/100M
|
1550nm
|
Singlemode
|
120km
|
|
LW-MC-S10
|
1000M
|
1310nm
|
Singlemode
|
10km
|
|
LW-MC-S20
|
1000M
|
1310nm
|
Singlemode
|
20Km
|
|
LW-MC-S30
|
1000M
|
1310nm
|
Singlemode
|
30km
|
|
LW-MC-S40
|
1000M
|
1550nm
|
Singlemode
|
40km
|
|
LW-MC-S50
|
1000M
|
1550nm
|
Singlemode
|
50km
|
|
LW-MC-S70
|
1000M
|
1550nm
|
Singlemode
|
70km
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
|
