E1/10(100)Base-t Bridge is a high performance, remote, self-learning Ethernet bridge. Its compact size and low cost make it ideal for cost-sensitive bridging applications, or as a LAN extender over bit stream type infrastructures. Its E1 data interface also provides an economical digital access solution for E1 and Fractional E1 network Services, which can work at data rates of 64Kbps to 2048Kbps. Users data is placed into the E1 frame using only the required number of timeslots. Timeslot assignment is accomplished according to the Data Port speed and manual setting of DIP switches. The main E1 link may be clocked from the recovered receive clock or from an internal oscillator. For easy to check the fault of network line, the device provides loop selection, both local loop and remote loop.
◆Based on self–copyright IC.
◆Ethernet transmit transparent through 1-4 E1 channels.
◆Ethernet interface 10M/100M, full/half duplex self-adapt, support VLAN.
◆support AUTO-MDIX, straight and crossover auto-adapt.
◆CRC alarm limitation can auto insulate bad-quality transmit channel by configuration,
and is single direction insulation. when one direction error rate over limitation,
cut only this direction, the other direction not affected.( the two directions need not symmetry.)
◆4 E1 can have 10 ms transmission delay, auto stop transmission when the delay above the limitation.
◆Provide 2 loop functions: local E1 loop, remote E1 loop.
◆MAC address capability:4096
◆ E1 interface according with ITU-T G.703,G.704,and G.823,not support the use of signaling time slot.
◆E1 interface have built-in clock resume circuit and HDB3 codec circuit.
◆Support E1 channel hot plug, and auto detect available E1 channels.
◆Support flexible setting of 1 to 4 E1 channels, auto detect the number of E1 channels and time-delay, select available E1 channels when reset.
◆Support reset remote system from local system.
◆Have Ethernet monitor self-reset function, device will not dead.
◆Network manager interface use SNMP

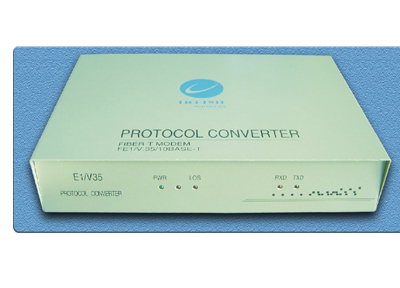

◆Two types: Standalone, desktop, 19inch;Card,usually be inserted in our rack 19 inch.
Technical Parameters:
|
Interface style
|
E1, 10/100Base-T
|
|
Data rate
|
E1 inter face:2.048Mbit/s+50ppm
|
|
10BASET interface transmission side
|
N*64Kbits/s(N=1~32)
|
|
10BASET interface user side
|
10/100 Mbits/s
|
|
E1 interface impedance
|
75 unbalanced/120 balanced
|
|
Power supply:
|
Voltage: AC180~240V
DC36V~72V
Power consumption:<5W
|
|
Environment:
|
Working temperature:0C~+50C
Storage temperature:-40C~+70C
|
|
Relative humidity:
|
5%~95% no coagulation
|
|
Dimension
|
222*166*46mm
|
|
|
|
Accessories in the package:
|
User Manual
|
|
Qualified Certification
|
Power Adapter
|
Specification
|
|
1 copy
|
|
1 copy
|
1
|
|
Ordering information:
|
|
|
LW-PC-E1/ETH
|
|
LW-PC-E1/V.35
|
|
LW-PC-E1/NRE
|
|
LW-PC-FE1/ETH
|
|
LW-PC-FE1/V.35
|
|
LW-PC-FE1/NRE
|
|
LW-PC-ETH/ETH
|
|
LW-PC-ETH/V.35
|
|
LW-PC-ETH/NRE
|
