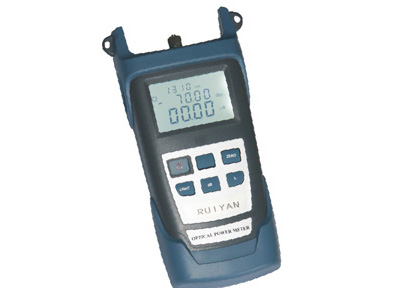

| LW-OPM series portable type optical power meter is a kind of intelligent optical power meter controlled by micro processor unit(MPU) with wide testing scope, high resolution, quick and accurate measurement of optical power for waves 1310nm and 1550nm, mainly applied to test the optical signal power, fiber optic, and optical instruments. With single detector, PM2 has a testing wavelength range of 400¬1050nm and optical power range of -60¬+25dBm
LW-OPM has a testing wavelength range of 800¬1700nm and optical power range of -70~+10dBm with high resolution to 0.001dB. It has six calibration points:850nm,980nm, 1300nm, 1310nm, 1480nmand 1550nm. It can display the optical power both linearly and nonlinearly, can also be applied to the absolute measurement on optical power and relative measurement on optical loss. The units for optical power display linearly are nW and μW , for optical power display nonlinearly is dBm, for relative measurement is dB. Lightwit Photonics company takes “Quality and Credit come first” as its base of exist and development. ISO9001 and CE assure the qualities for our customers,. Firmly through quality product line, effective research, manufacture and market management and with nearly a decade accumulation on industry insight and expertise, we have forged strong ties to customers from all over the world.
Key Features:
◆Four-bits LCD Display
◆Auto-Ranging for Conductivity
◆Small in Volume, Light in Weight
◆User self calibration function
◆Power measurements in dBm or mw and insertion loss in dB
◆Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline
◆batteries
◆Optional 10 minutes Auto-off function
Application:
◆Measurement and production of optical-electronic components and optical communication system
◆Experiment measurement in high school or universities and researching institutes
◆Engineering construction
◆Maintenance in Telecom
◆Maintenance CATV
◆Test Lab of optical fibers
Technical Parameters:
|
Style:
|
LW801-OPMA
|
LW801-OPMB
|
|
Detector :
|
InGaAs
|
InGaAs
|
|
Wavelength (nm):
|
850, 980, 1300, 1310, 1480, 1550
|
|
Measurement Range(dBm):
|
-70~+3
|
-50~+27
|
|
Uncertainty:
|
0.2
|
|
Degree of Linearity(dB):
|
0.03
|
|
Display usage:
|
LCD
|
|
Resolution:
|
0.01
|
|
Output style:
|
Interchangeability FC/SC/ST
|
|
Data Storage Capacity:
|
EEPROM
|
|
Operation temperature:
|
-15℃+60℃
|
|
Storage temperature:
|
-35~+70℃
|
|
Battery operating time:
|
>60h
|
|
Dimension(mm)
|
62*125*23
|
|
Weight(g):
|
100g
|
Accessories in the package:
|
User Manual
|
|
Qualified Certification
|
Power Adapter
|
Specification
|
|
1 copy
|
|
1 copy
|
1
|
1 copy
|
Ordering Information:
LW-OPM-A
LW-OPM-B
|
