Fiber Optic Adapter Home > Product > Fiber Optic Adapter

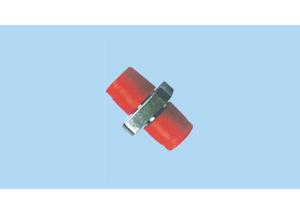

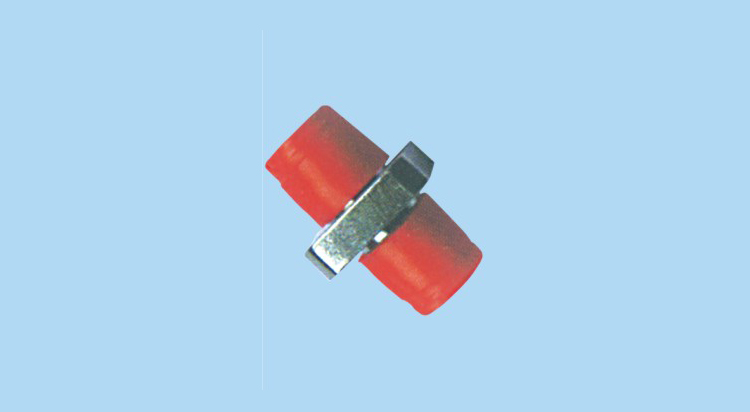

FC/APC Adapter

  Product Description:

Fiber Optical Adapter(also known as the flange) is a fiber optic connector on the activities of linking components. The complete series of products, including FC,SC, ST, LC, MTRJ, widely used in optical distribution frames(ODF), and optical fiber communications equipment, instrumentation, performance is stable and reliable. Lightwit Phoconics Co., Ltd takes “Quality and Credit come first” as its base of exist and development. ISO9001 and CE assure the qualities for our customers. Firmly through quality product line, effective research, manufacture and market management and with nearly a decade accumulation on industry insight and expertise, we have forged strong ties to customers from all over the word.


Key Features:

Precise size
Excellent repeatability
Ceramic caps can provide low-loss and the stability of specifications
Caps diameter(mm):0.125~0.127 (0.140mm is available)
Caps diameter(mm):2.499 ±0.0005 for SM(0.001 for MM)
Sheath diameter(mm):0.9, 2.0, 2.4, 3.0
Insertion loss:0.3 dB for SM≤, ≤0.5 dB for MM, ≤0.4 dB for SM/APC
Reflection attenuation: ≥45dB for PC, and ≥50dBfor UPC, ≥65dB for APC


Application:

CATV System
Telecommunications
Optical Networks
Testing/Measurement instruments
Fiber to the home
LAN&WAN
FTTP

Main Properties:
Fiber adapter between the opengings through its internal linking the casing.
Provide various forms of high-performance adapter, fiber jumpers to ensure that the link between the highest performance.
Transform type adapter can connect different types of fiber jumpers interface , and provide a link between APC End.
Double or even improve the installation density. Whether in the material or in the size tolerances, and are reflected on the appearance of more high-quality

Technical Parameters:
Type
FC/PC
FC/APC
SC/PC
SC/APC
ST/PC
Insertion loss
(dB)
≤0.20
Repeatability
(dB)
≤0.10
Interchangeablity
(dB)
≤0.20
Telescopic
Material
Ceramic
Operating
Temperature
()
-40~+80
-25~+70
-40~+80
Storage
Temperature
()
-40~+85



Raw Material Components:
Ferrule: high-quality, high-intensity Zirconia
Ceramic casing, phosphor bronze sleeve
External parts: a variety of models to choose from Seiko. Apramycin the United States. MOLEX the United States. Domestic

Environmental requirements:
Ambient temperature: -40℃~+85℃
Storage temperature: -40 ℃~+95℃


Accessories in the package:
User Manual

Qualified Certification

Specification
1 copy

1 copy

1 copy


Ordering information:

No.
Style
Mode
Color
Connector Style
LW-Adapter-
B=Bare
C=Connector
F=Flange
S=Standard
1=Single
2=Duplex
B=Blue
G=Green
K=Black
M=Metallochrome
FC, SC, LC
FC/SC,……
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
