Fiber Optic Patch Cords Home > Product > Fiber Optic Patch Cords

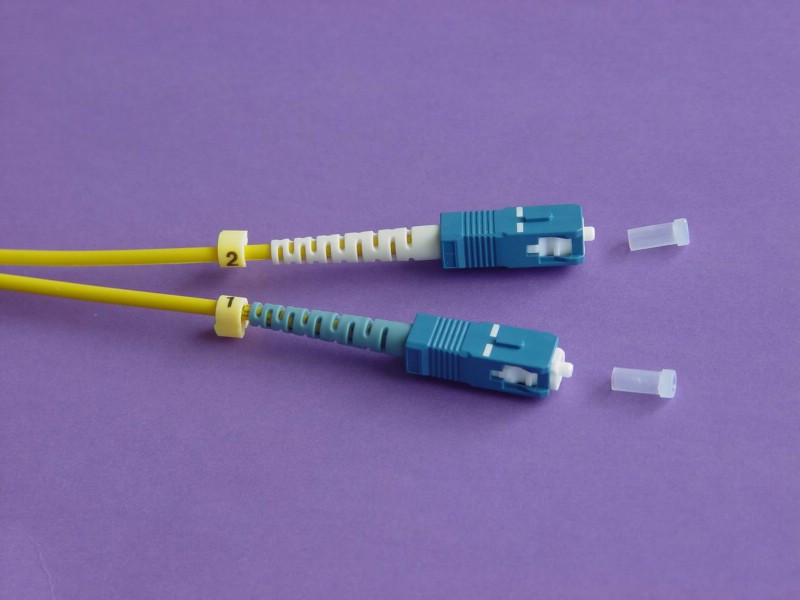

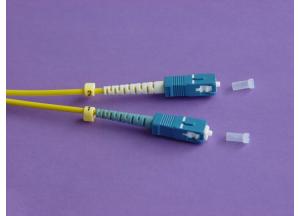

SC Patch Cords

  Product Description:

Fiber optical patchcord is installed on both ends of the light connector plugs, activities used to achieve optical connection with one end plugs is referred to as fiber pigtail. Fiber optical cable connector link types FC, SC, ST, ST-SC, SC-LC, face contact with a PC-based approach. Different types of connectors at both ends of the jumper. Call forwarding jumper. Lightwit Photonics company takes “Quality and Credit come first” as its base of exist and development. ISO9001 and CE assure the qualities for our customers,. Firmly through quality product line, effective research, manufacture and market management and with nearly a decade accumulation on industry insight and expertise, we have forged strong ties to customers from all over the world.

Key Features:

Precise size
Excellent repeatability
Ceramic caps can provide low-loss and the stability of specifications
Caps diameter(mm):0.125~0.127 (0.140mm is available)
Caps diameter(mm):2.499 ±0.0005 for SM(0.001 for MM)
Sheath diameter(mm):0.9, 2.0, 2.4, 3.0
Insertion loss:0.3 dB for SM≤, ≤0.5 dB for MM, ≤0.4 dB for SM/APC
Reflection attenuation: ≥45dB for PC, and ≥50dBfor UPC, ≥65dB for APC


Application:

ODF Transmission System
Connecting optical communications equipment
Telecom Network
LAN
Cable
High-speed, high-capacity, SDH Optical Fiber Transmission



Model: FC/PC connector and LC connector:

Characteristics:
Precision Size
Good repeatability
Ceramic caps provide low-loss and the stability of specifications
Caps diameter(mm):0.125~0.127 (0.140mm is available)
Caps diameter(mm):2.499 ±0.0005 for SM(0.001 for MM)
Sheath diameter(mm):0.9, 2.0, 2.4, 3.0
Insertion loss:0.3 dB for SM≤, ≤0.5 dB for MM, ≤0.4 dB for SM/APC
Reflection attenuation: ≥45dB for PC, and ≥50dBfor UPC, ≥65dB for APC
Single-core or dual-core
Single-mode or multi-mode
Meet the requirements of 3-D
Demand can be made fiber cable(adapter jumper)
Demand can be multi-core production connector
Use can be made fiber pigtail
With GR-326-CORE requirements

Model: SC/DSC connector
Characteristics:
Precision Size
Good repeatability
Ceramic caps provide low-loss and the stability of specifications
Caps diameter(mm):0.125~0.127 (0.140mm is available)
Caps diameter(mm):2.499 ±0.0005 for SM(0.001 for MM)
Sheath diameter(mm):0.9, 2.0, 2.4, 3.0
Insertion loss:0.3 dB for SM≤, ≤0.5 dB for MM, ≤0.4 dB for SM/APC
Reflection attenuation: ≥45dB for PC, and ≥50dBfor UPC, ≥65dB for APC
Single-core or dual-core
Single-mode or multi-mode
Meet the requirements of 3-D
Demand can be made fiber cable(adapter jumper)
Demand can be multi-core production connector
Use can be made fiber pigtail
With GR-326-CORE requirements



Characteristics:
Precision Size
Good repeatability
Ceramic caps provide low-loss and the stability of specifications
Caps diameter(mm):0.125~0.127 (0.140mm is available)
Caps diameter(mm):2.499 ±0.0005 for SM(0.001 for MM)
Sheath diameter(mm):0.9, 2.0, 2.4, 3.0
Insertion loss:0.3 dB for SM≤, ≤0.5 dB for MM, ≤0.4 dB for SM/APC
Reflection attenuation: ≥45dB for PC, and ≥50dBfor UPC, ≥65dB for APC
Single-core or dual-core
Single-mode or multi-mode
Meet the requirements of 3-D
Demand can be made fiber cable(adapter jumper)
Demand can be multi-core production connector
Use can be made fiber pigtail
With GR-326-CORE requirements

Technical Parameter:
Type
PC
SPC
UPC
APC
Mode
SM
MM
SM
MM
SM
SM
MM
Insertion Loss(dB)
<=0.3
<=0.3
<=0.3
<=0.3
<=0.2
<=0.3
<=0.3
Return Loss(dB)
>=40
>=35
>=45
>=35
>=50
>=60
>=35
Repeatability (dB)



<=0.2



Changeability (dB)



<=0.2



Storage Temp()



-40~+80



Operating Temp()



-30~+75





Environmental Requirements:

Ambient temperature: -40℃~+80℃, -25℃~+70℃, -40℃~+80℃
Storage temperature: -45℃ to 85℃

Accessories in the package:
User Manual

Qualified Certification

Specification
1 copy

1 copy

1 copy


Ordering information:

No.
Connector Stype
Core Number
Mode
External Diameter(mm)
Length
LW-Patch Cord-
FC/PC-FC/PC,
SC/UPC-FC/APC
SC/PC-FC/APC
FC/PC-FC/APC
SC/PC-SC/APC
……
1=1,
2=2
1=SM
2=MM(62.5/125)
3=MM(50/125)
4=MM(100/140)
Φ0.9

Φ2.0
……




L1M
L2M
L3M
L4M
……
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
