| Product Description:

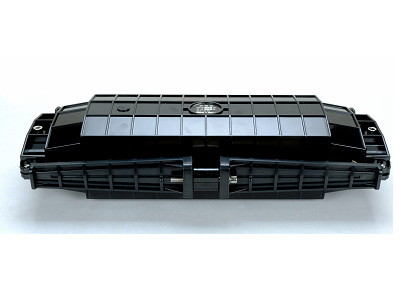

LW-CB series Fiber Optical Enclosure, also known as fiber optical cable connector box. Some places, particularly the radio and television system called Optical subsequent packets, and its role is to protect cable joints are not outside damage. Passive optical devices for optical fiber transmission system to provide the media, such as linking and fixed role. Fiber is divided into two categories: single-mode fiber and multi-mode fiber. Small single-fiber transmission loss, mainly used in long-distance transmission; multimode fiber transmission loss of the main short distance transmission(within 2 KM). Passive optical fiber devices typically include adapters, optical fiber activities connectors, fiber patch panels, optical attenuator, optical splitter, optical wavelength division multiplexing, optical fiber optics, and others. Lightwit Photonics company takes "Quality and Credit come first" as its base of exist and development. ISO9001 and CE assure the qualities for our customers,. Firmly through quality product line, effective research, manufacture and market management and with nearly a decade accumulation on industry insight and expertise, we have forged strong ties to customers from all over the world.
Key Features:
◆Shell using special materials
◆Cable box openings and import and export are reliable seal
◆Special structure of the fiber-melt
◆Strengthen the core and fiber optic cable installed fixtures
◆Take the whole design of fiber alignment design
◆Annex fully equipped
Performance advantages:
◆High strength, can be buried or overhead installation
◆Sealed simple, reliable sealing performance
◆Reliable grounding protection
◆Full protection of optical fiber, and to ensure that its bend radius≥40mm
◆Operation, maintenance convenient, fast
Environmental requirements:
Ambient temperature: -40℃~+85℃
Storage temperature: -40 ℃~+95℃
Scope of Application:
Fiber Optic Enclosure suitable for indoor and outside the direct successor and cable branch to aid and the protection of fiber optic cable and wiring Pigtail role.
Main Technical Parameters:
:
|
Environment Temperature:
|
-40℃~60℃
|
|
Atmospheric pressure:
|
70Kpa~106Kpa
|
|
Anti-tensile force:
|
>1000N
|
|
Anti-pressure:
|
>200N/10cm 2 pressure, time 1 min
|
|
Insulation Resistance:
|
>2*104MΩ
|
|
Compressive strength:
|
15KV(DC)/1min no breakdown, no flashover
|
Maximum capacity(core): ranging from 12 to 144 core
Ordering information: LW-CB-X (X=Core Number:12.......144)
Accessories in the package:
|
User Manual
|
|
Qualified Certification
|
|
Specification
|
|
1 copy
|
|
1 copy
|
|
1 copy
|
|
