Product Description： |
| |

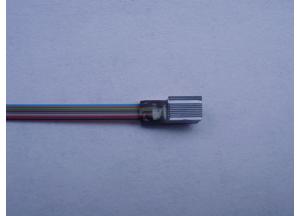

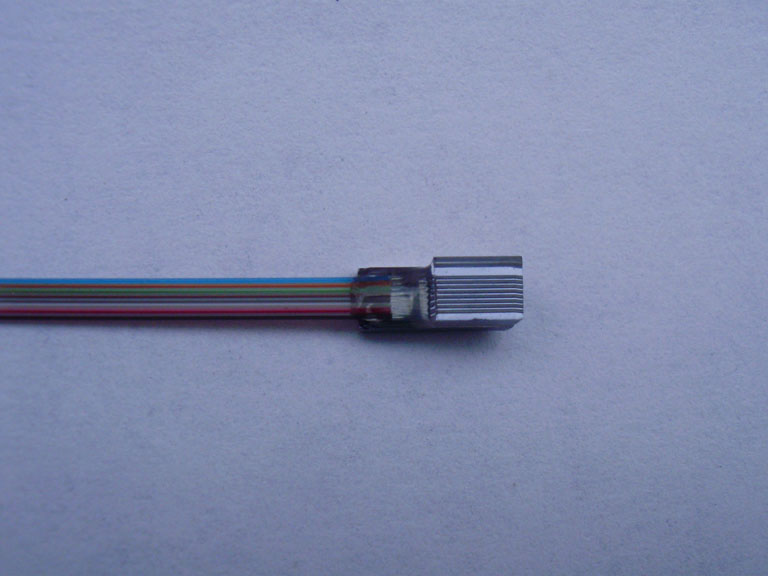

Lightwit Fiber Arrays are fabricated with high precision V-groove substrate by Lightwit union assembly/polish process to get an excellent accuracy of fiber core position and perfect quality of polish surface.
Lightwit provides high quality Fiber Array to meet customers various demands with low insertion loss, high return loss and compact dimension.
Key Features:
Excellent Accuracy of Fiber Core Position
High Reliability
Low Connection Loss
Glass Based V-groove & Lid
AR Coating Available
Application:
PLC Devices: Splitter, Coupler, AWGS
MEMS
Integrated Active/Passive Components
Micro Optics Modules
Variable Optical Attenuators
Lens/Collimators Array
Ordering information:
|
No.
|
Fiber
|
Core Pitch
|
Width(W)
|
Length(L1)
|
Height(H)
|
LidLength(L2)
|
|
LW-FA01
|
250um
900um
|
|
2.5
2.5
|
8
8
|
2.5
2.5
|
4.2
4.2
|
|
LW-FA04
|
4f rib bon
|
250um
|
2.5
|
10
|
2.5
|
4.2
|
|
LW-FA08
|
8f rib bon
2*4f rib bon
|
250um
127um
|
3.2
2.5
|
10
10
|
2.5
2.5
|
4.2
4.2
|
|
LW-FA16
|
2*8f rib bon
|
127um
|
3.2
|
12
|
2.5
|
4.2
|
|
LW-FA32
|
4*8f rib bon
|
127um
|
5.7
|
12
|
2.5
|
4.2
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
|
| |
|
|
|
|
|
|
|
