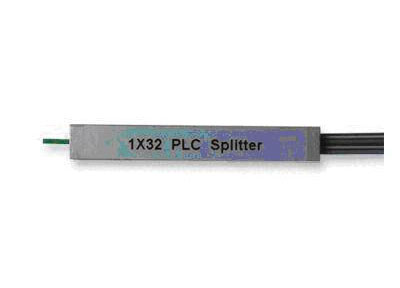

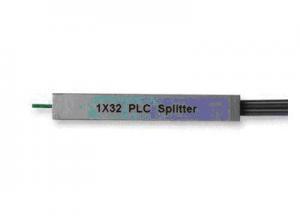

Single-mode PLC (Planar Lightwave Circuits) splitters are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. PLC splitters provide low-cost solution for optical signal distribution, with small form factor and superb reliability. These PLC devices have high quality performance, such as low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260 nm to 1620 nm, and work in temperature from -40ºC to +85ºC.
The PLCs devices have 1x4, 1x8, 1x16 and 1x32 standard configurations, as well as customized structures of 2x4, 2x32, and 2x64.
Features:
- Low insertion loss and low PDL
- High channel number
- High reliablility
- Compact size
- Wide operation temperature range and wavelength range
- Full Telcordia GR1209/1221 qualifications
Applications:
- FTTx systems
- Optical LAN, Metro, WAN networks
- Passive optical networks
- CATV networks
Ordering Information:
|
No.
|
Channel Number
|
Input Fiber Type
|
Input Fiber Length
|
Output Fiber Type
|
Output Fiber Length
|
Input Connector Type
|
Output Connector Type
|
|
LW-PLC-
|
0: 1*2
1: 1*4
2: 1*8
3: 1*16
4: 1*32
5: 1*64
6: 2*2
7: 2*4
8: 2*8
9: 2*16
A: 2*2
|
1: 250um
2: 900um
9: Customized
|
1: 0.5m
2: 1.0m
3: 1.5m
4: 2.0m
9: Customized
|
1: Basic-type
|
10: 0.5m ribbon
20: 1.0m ribbon
30: 1.5m ribbon
40: 2.0m ribbon
|
0: None
|
0: None
|
|
2: 900um fanout-type
|
11: 0.5m ribbon+fanout +0.5m900um
12: 0.5m ribbon+fanout +1.0m900um
21: 1.0m ribbon+fanout +0.5m900um
22: 1.0m ribbon+fanout +1.0m900um
|
1: SC/UPC;
2: LC/UPC;
3:FC/UPC;
4: SC/APC;
5: LC/APC;
6: FC/APC;
9: Customized
|
1: SC/UPC;
2: LC/UPC;
3:FC/UPC;
4: SC/APC;
5: LC/APC;
6: FC/APC;
9: Customized
|
|
3: 900um SFF-type
|
50: 0.5m900um Tube
60: 1.0m900um Tube
70: 1.5m900um Tube
80: 2.0m900um Tube
|
|
4: Customized
|
99: Customized
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@lightwit.com.cn
|
