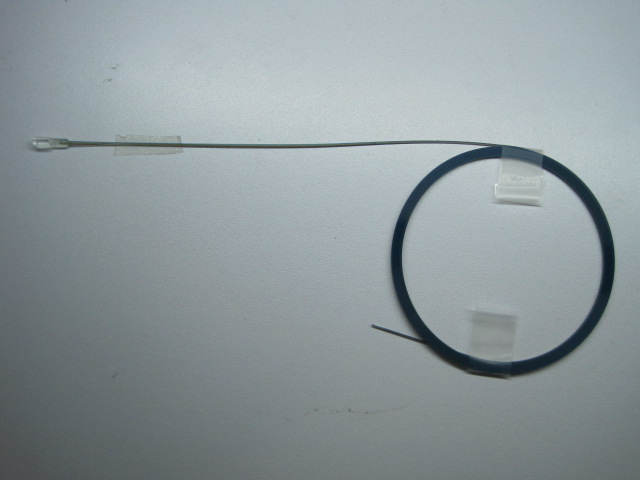

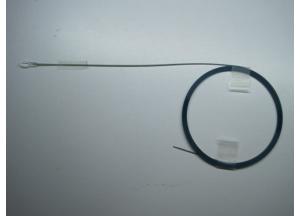

Key Features: Application:
♦Low insertion loss ♦PM isolator
♦High extinction ratio ♦PM WDM
♦High return loss ♦Fiber sensor
♦High stability and reliability ♦Laser
Specification
|
Parameter
|
1ch
|
2ch
|
4ch
|
8ch
|
|
Operating wavelength (nm)
|
1260~1620 or others
|
|
Insertion Loss(dB)
|
≤0.15
|
|
ER(dB)
|
≥22
|
|
Return loss (dB)
|
≥50
|
|
Fiber typ
|
PM fiber980，1310，1550 or others
|
|
Operating temperature(℃)
|
-5~70
|
|
Storage temperature(℃)
|
-40~85
|
|
Package Dimension
(L×W×H)(mm)
|
6*2.5*2.5
|
6*2.5*2.5
|
8*2.5*2.5
|
8*2.5*2.5
|
*The specifications are w/o connector.
* For devices with connectors, 0.3dB higher for IL, 5dB lower for RL and 2dB lower for ER.
* For device with connector, key aligned to slow axis.
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis
Ordering Information
|
PMFA
|
XX
|
X
|
XX
|
X
|
X
|
X
|
XX
|
|
Product
description
|
Channel
Count
|
Pigtail
Type
|
Fiber
Type
|
Polishing
Angle
|
Output
Connector
Type
|
Package
Size
|
Fiber
Length
|
|
P=Polarization
|
1=1ch
|
0=250um
|
98=PM98
|
A=+8°
|
0=None
|
6=6*2.5*2.5
|
05=0.5m
|
|
M=Maintaining
|
2=2ch
|
1=900um
|
06=PM98
|
V=-8°
|
1=FC/UFC
|
8=8*2.5*2.5
|
08=0.8m
|
|
F=Fiber
|
4=4ch
|
|
13=PM13
|
N=0°
|
2=FC/APC
|
others
|
10=1.0m
|
|
A=Array
|
8=8ch
|
|
15=PM15
|
|
3=SC/UPC
|
|
15=1.5m
|
|
|
|
|
|
|
4=SC/APC
|
|
|
|
|
|
|
|
|
5=LC/UPC
|
|
|
|
|
|
|
|
|
6=LC/APC
|
|
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
