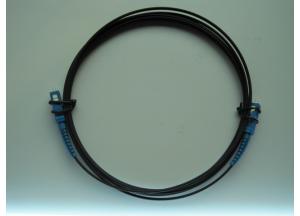

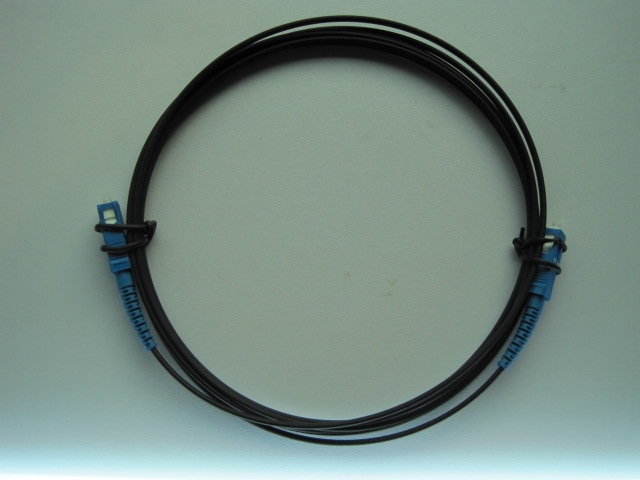

Key Features: Application:
♦Low insertion loss ♦EDFA&Raman ampfier
♦High extinction ratio ♦Fiber instrument
♦High return loss ♦Fiber sensor
♦High stability and reliability ♦Laser
Specification
|
Parameter
|
Unit
|
Value
|
|
Connector Type
|
|
FC/UPC, SC/UPC,LC/UPC,MU/UPC, FC/APC, SC/APC,LC/APC
|
|
Wavelength
|
nm
|
1310, 1550
|
980, 1060,
|
850
|
780
|
|
Insertion Loss
|
dB
|
≤0.3
|
≤0.5
|
≤0.8
|
≤0.8
|
|
Return
loss
|
UPC Type
|
dB
|
≥50
|
|
Return
loss
|
APC type
|
dB
|
≥60
|
|
Extinction Ratio at 23℃
|
dB
|
≥23
|
≥23
|
≥22
|
≥22
|
|
Fiber Type
|
|
PM1310,PM1550
|
PM980
|
PM850
|
PM780
|
|
Key Orientation
|
|
Slow Axis
|
|
Axis Alignment
|
deg
|
±3
|
|
Operating temperature
|
℃
|
-20~+70
|
|
Storage temperature
|
℃
|
-40 ~ +80
|
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis
Ordering Information
|
PMJP
|
Connector Type (Input)
|
Connector Type(Output)
|
Wavelength (nm)
|
Fiber cable Type
|
Fiber Type
|
Length
|
|
|
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
LC=LC/UPC
LC=LC/APC
MU=MU/UPC
|
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
LC=LC/UPC
LC=LC/APC
MU=MU/UPC
|
780
850
980
1064
1310
1550
|
250=250um bare fiber
900=900um loose tube
2000=2mm loose tube
3000=3mm loose tube
|
PM780
PM850
PM980
PM1310
PM1550
|
1=1m
2=2m
X=Other
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
