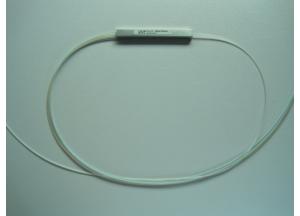

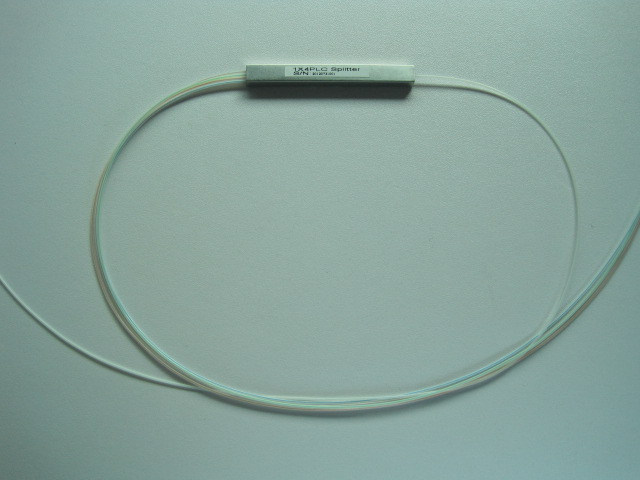

Key Features: Application:
♦Low insertion loss ♦EDFA&Raman ampfier
♦High extinction ratio ♦Fiber instrument
♦High return loss ♦Fiber sensor
♦High stability and reliability ♦Laser
Specification
|
Parameter
|
1x2 2x2
|
2x4 2x4
|
1x6 2x6
|
1x8 2x8
|
|
Operating wavelength (nm)
|
1260-1650(nm) or others
|
|
Insertion Loss (dB)
|
≤4.5
|
≤7.5
|
≤8.8
|
≤10.5
|
|
Uniformity (dB)
|
≤0.6
|
≤0.6
|
≤0.8
|
≤0.8
|
|
ER (dB)
|
≥20
|
≥20
|
≥20
|
≥20
|
|
Return loss (dB)
|
≥50
|
|
Fiber type
|
PM fiber980，1310，1550 or others
|
|
Operating temperature(℃)
|
-5~70
|
|
Storage temperature(℃)
|
-40~85
|
|
Components Package Dimension ( Bare fiber 250um)
(L×W×H)(mm)
|
40×4×4
|
40×4×4
|
40×4×4
|
40×4×4
|
|
Module Package Dimension
(L×W×H)(mm)
|
100×80×10
|
*The specifications are w/o connector.
* For devices with connectors, 0.3dB higher for IL, 5dB lower for RL and 2dB lower for ER.
* For device with connector, key aligned to slow axis.
Ordering Information
|
PMPLC NXM
|
XX
|
X
|
XX
|
X
|
X
|
X
|
XX
|
|
Product
Description
|
Operating
Wavelength
|
Pigtail
Type
|
Fiber
Type
|
Input
Connector
Type
|
Output
Connector
Type
|
Package Size
|
Fiber
Length
|
|
P=Polarization
|
98=980nm
|
0=250um
|
98=PM98
|
0=None
|
0=None
|
1=40×4×4
|
05=0.5m
|
|
M=Maintaining
|
06=1060nm
|
1=900um
|
06=PM98
|
1=FC/UFC
|
1=FC/UFC
|
2=50×7×4
|
08=0.8m
|
|
P=Planar
|
13=1310nm
|
|
13=PM13
|
2=FC/APC
|
2=FC/APC
|
3=100X80X10
|
10=1.0m
|
|
L=Lightwave
|
15=1550nm
|
|
15=PM15
|
3=SC/UPC
|
3=SC/UPC
|
|
15=1.5m
|
|
C=Circuit
|
|
|
|
4=SC/APC
|
4=SC/APC
|
|
|
|
N=1,2
|
|
|
|
5=LC/UPC
|
5=LC/UPC
|
|
|
|
M=2,4,8,
|
|
|
|
6=LC/APC
|
6=LC/APC
|
|
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
|
