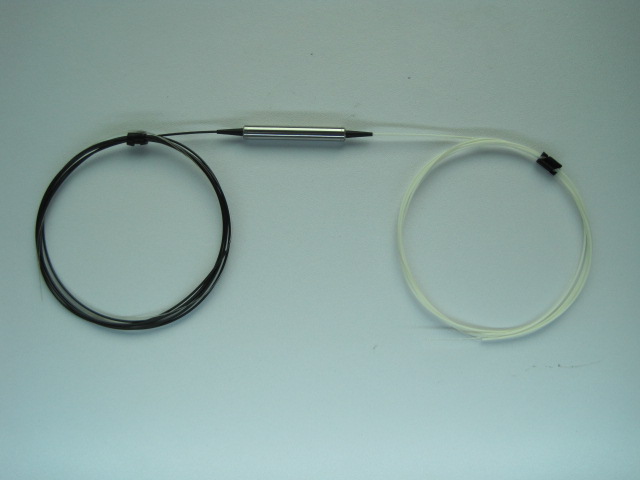

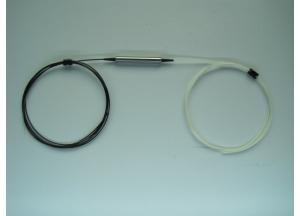

| 保偏平坦增益滤波器 |
首页 > 产品中心 > 保偏平坦增益滤波器 |
|
|
|
|
| |
产品描述： |
| |
Key Features: Application:
♦Low insertion loss ♦EDFA&Raman ampfier
♦High extinction ratio ♦Fiber instrument
♦High isolation ♦Fiber sensor
♦High stability and reliability ♦Laser
Specification:
|
Parameter
|
Value
|
|
Wavelength Range C-band (nm)
|
1528 ~ 1565
|
|
Insertion Loss (dB)
|
< 0.6
|
|
Peak to Peak Error Function (dB)
|
< 0.5
|
|
Extinction Ratio (dB)
|
< 0.1
|
|
Return Loss (dB)
|
> 50
|
|
Maximum Power Handling (mW)
|
500
|
|
Operating Temperature (°C)
|
0 ~ +70
|
|
Storage Temperature (°C)
|
-40 ~ +85
|
|
Dimensions (mm)
|
5.5xL34
|
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis
Ordering Information
|
PMGFF
|
Port
Type
|
Wavelength
|
Pigtail Type
|
Fiber Type
|
Length
|
Connector
|
|
|
1x1
|
1550
|
250=250um bare fiber
900=900um loose tube
|
2=PMF
|
1= 1m
|
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
LC=LC/UPC
LA=LC/APC
XX=Other
|
For drawings, technical data or samples configuration other than stated above, please feel free to contact us:
sales@lightwit.com.cn
|
| |
|
|
|
|
|
|
|
