产品描述： |
| |
特点： 应用：
♦低插入损耗 ♦ 微小型保偏器件
♦高回波损耗 ♦光纤传感器、仪表
♦高消光比
♦角度精确
♦体积小
♦稳定性可靠性好
Specifications:
|
Parameter
|
Single Fiber
|
Dual Fiber
|
|
Center Wavelength(nm)
|
980,1060,1310, 1550
|
|
Capillary Diameter(mm)
|
1.0 or 1.8
|
|
Diameter Tolerance (mm)
|
± 0.005
|
|
Capillary Length (mm)
|
4.75 ± 0.25
|
5.75 ± 0.25
|
|
Polishing Angle (degree)
|
8° or specify
|
|
Fiber Type Combination
|
PM Fiber & PM Fiber, PM Fiber & SMF-28
|
|
Extinction Ratio (dB)
|
≥23
|
|
Scratch/Dig
|
10/5
|
|
AR-coating
|
R < 0.25% @ specified wavelength range
|
Customer specificed is accepted
Ordering Information:
|
PMFP
|
Type
|
Capillary
Diameter
|
AR
Coating
|
Polishing
Angle
|
Pigtail Type
|
Fiber
Type
|
Fiber

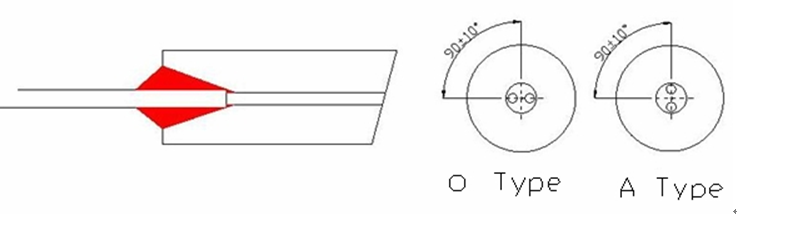

Orientation
|
Length
|
|
|
S= Single fiber pigtail D=Dual Fiber pigtail
|
1.8=1.8mm
1.0=1.0mm
|
850 980 1064 1310 1550
|
8=8°
X=Specify
|
250=250um
bare fiber
|
5=Panda
fiber
|
O=O Type
A= A Type
|
1= 1m
X=other
|
For drawings, technical data or samples configuration other than stated above, please feel
|
| |
|
|
|
|
|
|
|
