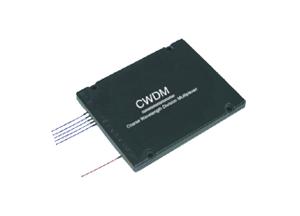

LW-CWDM系列4/8通道粗波分复用器(CWDM)

  产品描述:

Product Description:

Lightwit Photonics’ Coarse Wavelength Division Multiplexer (CWDM) is expanding the bandwidth of Metro/Access communications networks.
Lightwit Photonics’ CWDM is based on thin film filter technology and metal bonding micro optics packaging. Lightwit Photonics provides high quality CWDM with flat channel bandwidth, flexible channel configuration, low insertion loss and high isolation. It is designed to upgrade capacity easily as the system grows. All Lightwit Photonics products are epoxy-free in the optial path. Lightwit Photonics’ CWDM components provide an ideal balance of price and performance for multiplexing and dumultiplexing in Metro/Access networks.

Key Features:

Telcordia GR-1221 and GR-1209 Compliance
High Channel Isolation
Low Insertion Loss
Epoxy-Free Optical Path
Customized Specifications Available


Application:

Dense WDM System
Longhaul/Metro Communication Networks
Fiber Amplifier System
Fiber Optic Instruments


Specification:
Parameter
4-Channel
8-Channe

MUX
DEMUX
MUX
DEMUX
Operating Wavelength
1470 (or 1471)~1610 (or 1611) nm
Channel Spacing
20nm
Channel Passband
CW 6.5nm
Maximum Insertion Loss (with connectors)
1.5 dB
1.8 dB
2.7 dB
3.0 dB
Minimum Adjacent Channel Isolation
12 dB
30 dB
12 dB
30 dB
Minimum Non-adjacent Channel Isolation
12 dB
40 dB
12 dB
40 dB
Minimum Directivity
50 dB
60 dB
50 dB
60 dB
Minimum Return Loss
45 dB
Maximum Thermal Dependent Loss
(relative to 23 )
0.20 dB
0.25 dB

Maximum Polarization Dependent Loss
0.10 dB
Maximum Polarization Mode Dispersion
0.10 ps
Maximum Channel Uniformity
1.0 dB
Maximum Passband Ripple
0.5 dB
Minimum Tensile Load
5 N
Minimum Power Handling
300 mW
Operating Temperature
-5 ~ 70
Storage Temperature
-40 ~ 85
Pigtail Type
900 um, 2 mm, 3 mm
Connector Type
FC, SC, MU, LC
Package Dimensions(L x W x H)
120 x 80 x 8 mm (standard)

Note: Operating wavelength from 12070 (or 1271) to 1450 (1451) nm is also available


Ordering information:

No.
Type
Central Wavelength
Insulation
Pigtail length
Connector style
Package dimension

LW-CWDM
WDM,
WDM-AD,
CWDM
1=1510/1530;
2=1530/1550;
3=1510/1550;
4=1530/1570;
5=1310/1510/1530;
6=1310/1510/1530/1550;
7=1310/1510/1530/1550/1570
1=Standard,
2=High
1=1M,
2=2M,
…..
SC/UPC,
SC/APC,
FC/UPC,
FC/APC
A= 105.2(L)*78.5(W)*12.7(H)( 900um lose tube)
B=105.2(L)*78.5(W)*12.7(H)( μ3.0mm PVC tube)

For drawings, technical data or samples configuration other than stated above, please feel free to contact us:  sales@lightwit.com.cn
